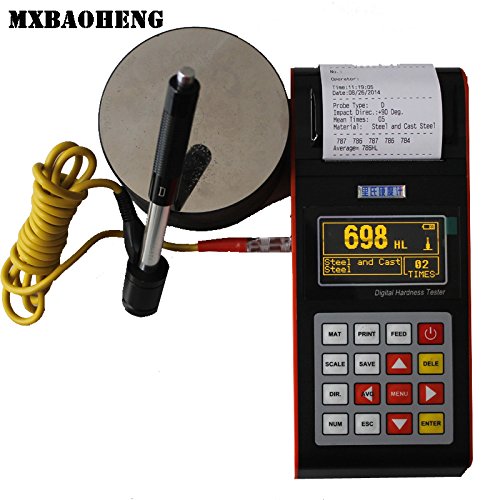

YHT400 Portable Digital Leeb Hardness Tester with Printer 600 groups Memory
- メーカー
- MXBAOHENG
- JAN
- 7608911574615
- メーカー品番
- HQ-1415
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Technical Specifications:
Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
Measuring range: HLD (170-960)?HRC (17.9-69.5),HB (19-683)?HV (80-1042)? HS (30.6-102.6)?HRA(59.1-88)?HRB (13.5-101.7)
Display LCD: dot matrix LCD?128?4 dots
D Data memory: 500 groups max.(relative to impact times 32?1)
Printing paper: width is ?57.5?.5?mm, diameter is 30mm
Standard Impact Device; D
Optional Impact Devices: DC, D+15, G, C, DL
Battery pack: 6V NI-MH
Battery charger: 9V/500mA
Continuous Working time approx.: 200 h (with back light, No Printing)
Communication interface: USB2.0
Operating temperature: -10?~40?
Humidity: ?90%
Dimensions: 210 x 85 x 45mm (main unit)
Weight approx.: about 0.6kg (host).
Main Application:
1.Die cavity of molds
2.Bearings and other parts
3.Failure analysis of pressure vessel, steam generator and other equipment
4.Heavy work piece
5.The installed machinery and permanently assembled parts
6.Testing surface of a small hollow space
7.Material identification in the warehouse of metallic materials
8.Rapid testing in large range and multi-measuring areas for large-scale work piece.
特記事項
- 1.Large screen(128?4 dot matrix LCD), showing all functions and parameters.
- 2.Support "forged steel (Steel)" material, when using the D/DC impact device test "forged" sample, can read HB value directly, without the need for manual checking table.
- 3.Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HRA, HV, HB, HS, HL and three types of strength values immediately.
- 4.Seven impact devices are available for special application. Automatically identify the type of impact devices.
- 5.Large capacity memory could store 600 groups (Relative to average times32?1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
