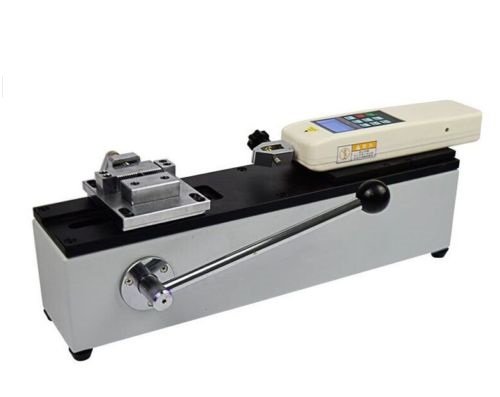

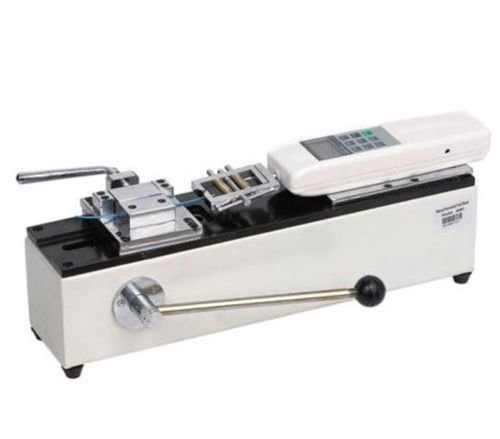

New Wire Terminal Pulling-out Force Gauge Tester (Test stand + 500 Newton Digital force gauge + Fixture)
- メーカー
- MXBAOHENG
- JAN
- 7608911571362
- メーカー品番
- MXBAOHENG
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

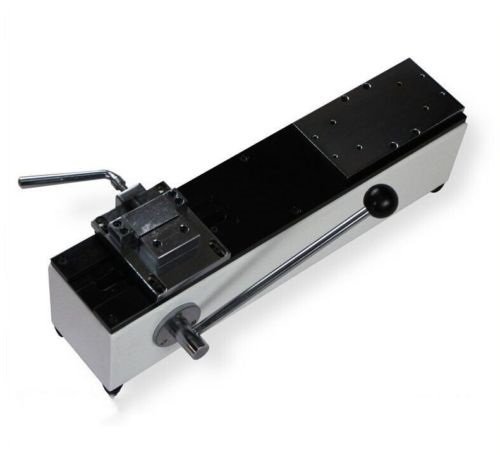

Horizontal installation
Manual operation, simple and stable.
This machine can be installed on the table (platform) to make the frame more stable to use.
Effective stroke: 50mm
Rated load: 500N (Can also be configured 1000N)
1. Digital force gauge HF-500 (standard)
Max. Load:500N(Kg, N and Ib three units can be converted automatically)
Resolution: 0.01N
Precision: ?.5%
Output interface: RS 232 Nine holes socket
Charging power: 110-220V/AC, Batteries continuous working time: 6-8 hours
Stability: temperature drift: 0.2uV/?0~60?C); null drift: ? 0.1%/8hours/FS
Calibration range: Full range calibration
Environmental temperature: 0~+60?C
Environmental humidity:? 80%
Allow overload: 150%
Supply power mode: No. 5 Ni-MH battery, 220V AC, charging for 4-6 hours
特記事項

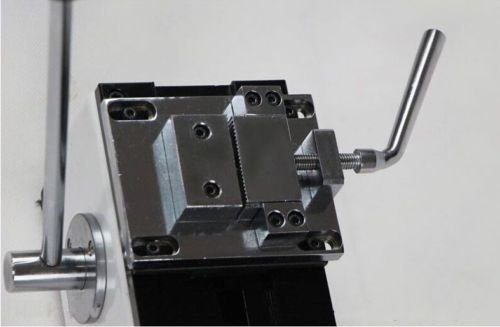

- Test stand + 500 Newton Digital force gauge + Fixture
- The standard configuration of terminal pull force tester is with digital force gauge (HF-500).
- Test Stand Wire terminal Pulling-out Force Meter ADL is an instrument with a test stand, a 500 Newton digital force gauge and a fixture. With this device, you can guarantee for the quality of your product with more confidence, since it can test the pulling out force of variety of wire terminals. When testing the harness, the instrument can combine the digital force gauge(HF-500) and analogue force gauge (NK-500).
