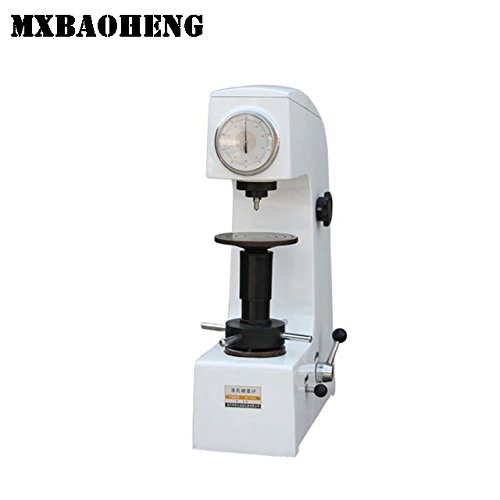

HR-150A Rockwell Hardness Tester Heat Treatment Special Metal Hardness Tester Max 150kg Force
- メーカー
- MXBAOHENG
- JAN
- HQ-1435
- メーカー品番
- HQ-1435
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Technical Specifications:
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471, Newton (60, 100, 150 kg force)
Maximum permissible height of sample: 170 mm
Distance from center to wall: 135 mm
Hardness resolution: 0.5HR
Size: 466 x, 238 x, 630 mm
Weight: about 65 kg
Main features:
It is widely applicable to quality monitoring in production field, and has strong working environment adaptability;
There are 2 National patents;
The accuracy conforms to GB/T230.2 ISO 6508-2 and us ASTM E18.
Application range:
Measuring Rockwell hardness of ferrous, non-ferrous and non-metallic materials
The application range is wide, applicable to Rockwell hardness measurement of heat treatment materials such as quenching, quenching and tempering.
It is especially suitable for parallel flat metal, and the surface measurement is stable and reliable!
特記事項
- Manual Rockwell hardness tester, accurate, reliable and durable, high testing efficiency;
- Optimize the design of the mechanical structure, the diamond shape design
- Dial direct readings, HRA, HRB, HRC scales; Optional with other Rockwell's scales;
- Precise oil pressure buffer, adjustable loading speed;
- Mechanical and manual testing process without electrical control;
