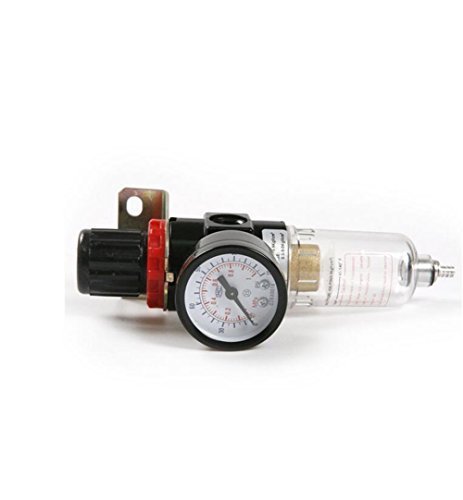

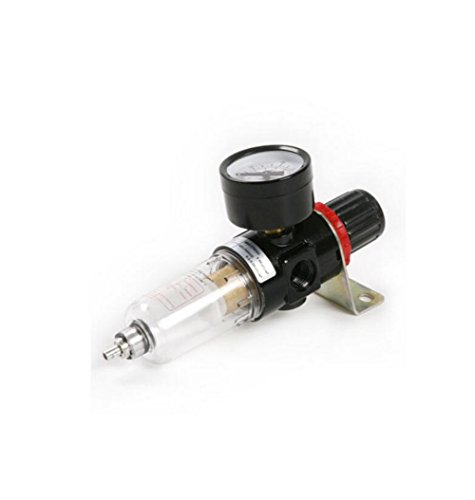

MXTBY AFR2000空気圧レギュレータ水分離トラップフィルターエアブラシコンプレッサー
- メーカー
- MXTBY
- JAN
- 0604753382811
- メーカー品番
- 0604753382811
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Product Details:
Brand New
Model: AFR2000 (AFR is the model, 2000 refers to the port size)
Material: body (aluminum die-casting products), Yung cup (polycarbonate)
Fluid: Air
Port size: G1 / 4
Filtration precision: 5μm
Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)
Temperature: 5 ~ 60 ℃
Gauge caliber: G1 / 8

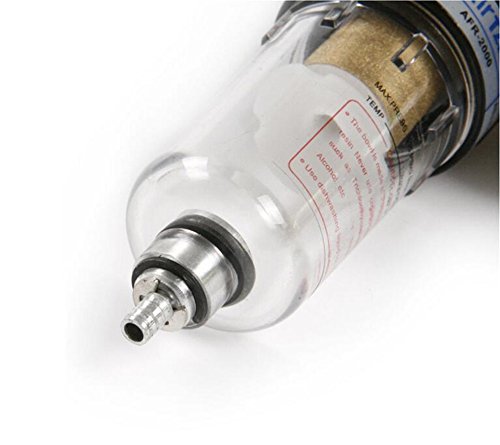

Treatment cup capacity: 15CM3
Length: appox 15cm
Installation and Use :
The direction shown by the arrow on the valve body is installed, which is the direction of the gas flow direction.
特記事項
- Model: AFR2000 (AFR is the model, 2000 refers to the port size)
- Material: body (aluminum die-casting products), Yung cup (polycarbonate)
- Fluid: Air
- Filtration precision: 5μm
- Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)
