Mekarsoo　(ME-03)ワイヤロケーター　マルチケーブルテスター lan RJ45/RJ11対応　電話配線やLANケーブルの測定　ツイストペアケーブル測定 (電話線 電気 通信 工事)

商品説明

Features:
One person enough to complete cable continuity check The function of probing the audio and tracing the cable Check network cable faults, such as open, short, jumper wire, reverse connection or cross-talk interference
Measure cable length and determine the distance of open and short circuit
Dynamically calibrate cable length and make length measurement as accurate as 95% Far-end recognizer with prompting voice Self-checking function and automatically compensate any change in battery capacity or ambient temperature Single board computer software watchdog design and reliable operation

Specifications:
メインテスター: 180*80*40mm
レシーバー: 218*46*29mm
アイデンティファイア: 77*31*21mm
Power for main tester: 6V battery(not included)
Power for receiver: 9V battery(not included)
Tester port: Tester RJ45 master port (M), tester
LOOPBACK RJ45 port (L), hunting RJ45
port(SCAN); Remote identifier RJ45 port (R); The
extra BNC and RJ11 converters (to measure and
check the continuity of coaxial cable and telephone line)
Scope: 1 to 350M (3 to 200ft)
Calibration accuracy: 3%(+/- 0.5M or +/- 1.5ft)(calibrating cable>5M)
Shipment accuracy: 5%(+/- 0.5M or +/- 1.5ft)(AMP, AT and T Class 5 cable)
Length calibration: More than 5M

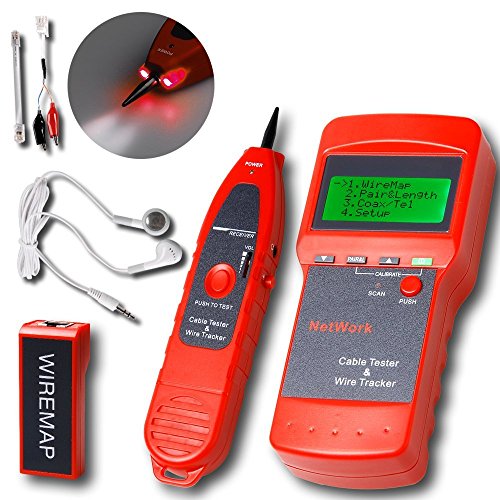

●パッケージ内容:
1 ×メインテスター
1 × レシーバー
1 ×アイデンティファイア
1 × クランプ
1 × Earphone
1 × 取り扱い説明書
1 × 収納ボックス
1 × Kit 収納バッグ
・乾電池付属なし（9V電池）
・パッケージにも「Mekarsoo」のシールを貼り付けています。
