JTW-8640Cデジタルマルチメータ3999 AC/DC Volt Ampオーム容量周波数温度ダイオード連続性試験器（色：グレーとレッド）

商品説明

Description:

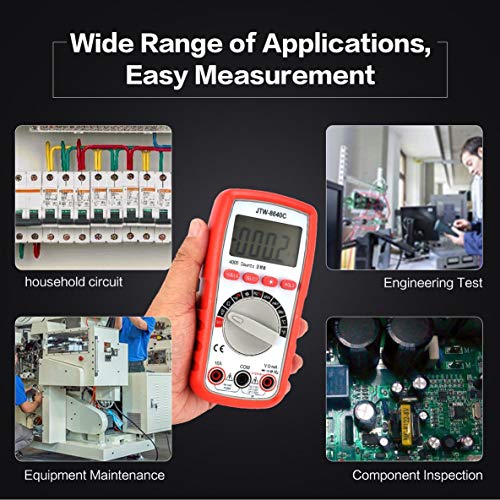

1.This JTW-8640C is a handheld digital multimeter,high reliability and portability,a perfect tool for the laboratory,factory and home.

2.It can measure AC/DC voltage,AC/DC current,resistance,capacitance,

frequency,duty cycle,temperature,diode and continuity.

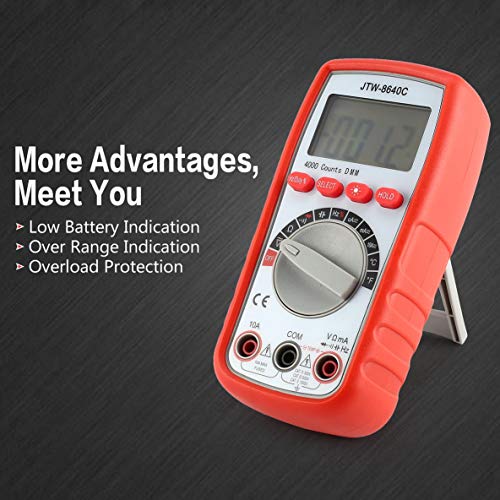

3.Moreover,more advantages such as data hold,low battery indication,over range indication and overload protection.

Specifications:

Model: JTW-8640C

Color: Gray&Red

Display Counts: 3999

Diode Test: Yes

Continuity Test: Yes

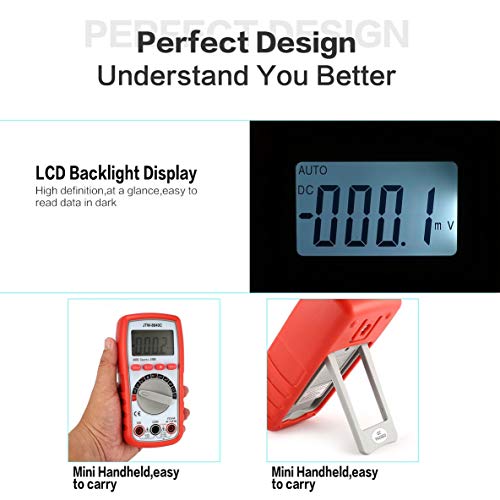

Backlight: Yes

Data Hold: Yes

Low Battery Indication: Yes

Over range indication: Yes

Overload Protection: Yes

DC Voltage: 400mV/4V/40V/400V±(0.5%+4),1000V±(1.0%+4)

AC Voltage: 4V/40V±(0.8%+6),400V/750V±(1.0%+4)

DC Current: 4mA/40mA/400mA±(0.8%+6),10A±(1.2%+10)

AC Current: 4mA/40mA±(0.8%+6),400mA/10A±(1.2%+10)

Resistance: 400Ω±(0.8%+5),4KΩ/40KΩ/400KΩ/4MΩ±(0.8%+4),40MΩ±(1.2%+5)

Temperature: -20～0℃±(5%+2),0～750℃±(3%+5)

Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz±(0.1%+4)

Capacitance: 4nF±(2.5%+40),40nF±(2.5%+6),400nF/4uF40uF±(3.5%+8),200uF±(5%+8)

Power: 9V 6F22 battery (not included)

Product Size: 150 x 74 x 43mm

Product Net Weight: 268g

Package information:

Package Size: 16 x 10 x 5.2cm / 6.3 x 3.9 x 2.0in

Package Weight: 366g / 12.9oz

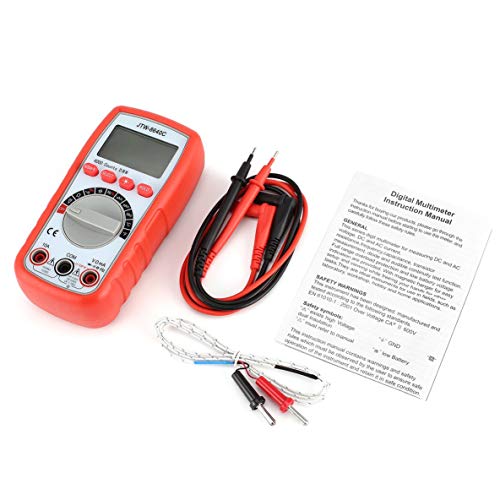

Package List:

1 x Digital Multimeter

2 x Test Leads Pens

1 x Temperature Test Cable

1 x User Manual
