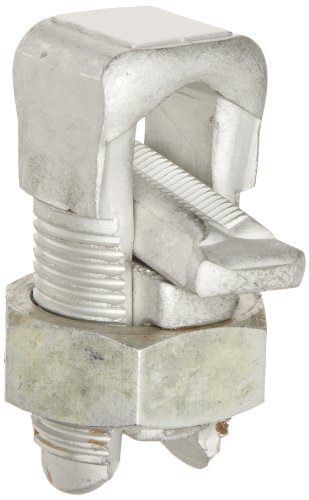

Morris Products 90422 Split Bolt Connectors With Spacer Dual Rated For Copper And Aluminum Conductors 4 - 0

商品説明

Split Bolt Connectors With Spacer Dual Rated For Copper & Aluminum Conductors 4/0 - Dual Rated Copper and Aluminum Split Bolt Connector.

• Dual rated split bolt connector is UL listed for all combinations of Aluminum, Aluminum to Copper, and Copper to Copper stranded wires
• 90412~90420 Manufactured from copper alloy, 90422~90426 manufactured from aluminum alloy
• Uniform bright electro-tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
• Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap connectors
• Free turning threads and easy to grip wrench flats
• Split bolt connector is highly resistant to season cracking and corrosion
• Anti Oxidant is recommended for all aluminum terminations
• Rated 600 Volts.

• Max Run To Max Tap: 4/0-4/0
• Min Run To Min Tap: 2-6
• Max Run To Min Tap: 4/0-6
• Temp Rating: 90°C
• Torque In-Lb: 500
• Item Weight - 0.25 lbs.
