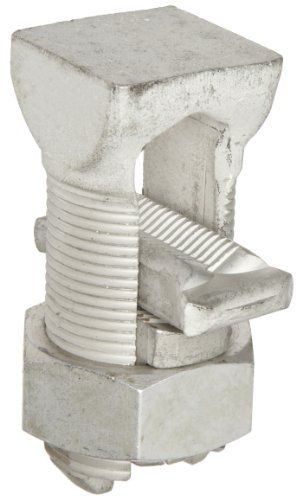

Morris Products 90426 Split Bolt Connectors With Spacer Dual Rated For Copper And Aluminum Conductors 500Mcm

商品説明

Split Bolt Connectors With Spacer Dual Rated For Copper & Aluminum Conductors 500MCM - Dual Rated Copper and Aluminum Split Bolt Connector.

• Dual rated split bolt connector is UL listed for all combinations of Aluminum, Aluminum to Copper, and Copper to Copper stranded wires
• 90412~90420 Manufactured from copper alloy, 90422~90426 manufactured from aluminum alloy
• Uniform bright electro-tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
• Spacer separates dissimilar conductors and provides long contact length that prevents high pressure point contacts between run and tap connectors
• Free turning threads and easy to grip wrench flats
• Split bolt connector is highly resistant to season cracking and corrosion
• Anti Oxidant is recommended for all aluminum terminations
• Rated 600 Volts.

• Max Run To Max Tap: 500-500
• Min Run To Min Tap: 400-2
• Max Run To Min Tap: 500-2
• Temp Rating: 90°C
• Torque In-Lb: 825
• Item Weight - 0.64 lbs.
