モリス製品96120地上絶縁ピアスコネクタメイン500-4 - 0タップ350-1- 0

商品説明

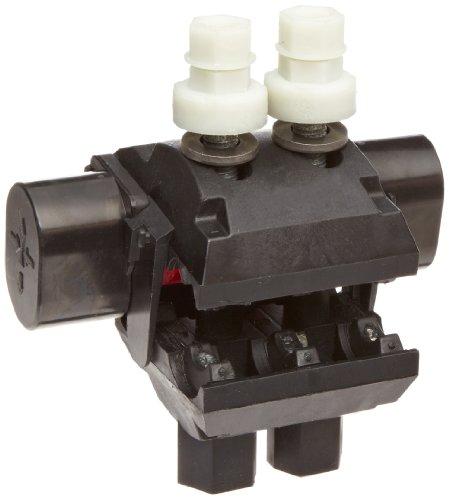

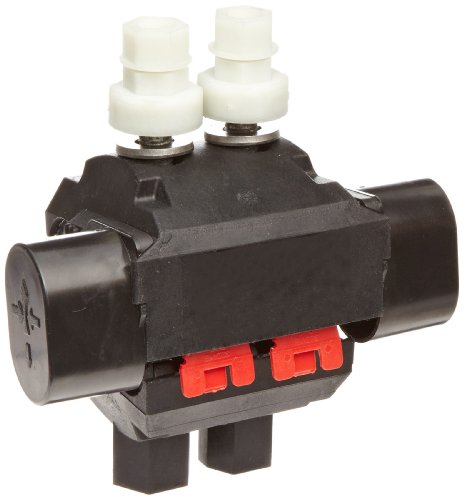

Above Ground Insulation Piercing Connectors Main 500-4/0 Tap 350-1/0 - Anyone can use our DIY Above Ground Connector.

• DIY connector Installs In Just Minutes Saving Many Man-Hours On The Job.
• Eliminates Wire Stripping, Connecting &Taping of Split Bolts and Adding Inhibitor.
• Above ground connector can be installed on Energized Circuits eliminating Power Shutdowns.
• Overhead services - both insulated &bare mains, above grade URD services, street lighting, non-tension splicing &tapping, insulated replacement for split bolts, tapping without cutting the main, gutter taps.
• Double shear-head bolt guarantees correct torque tightening every time, ensuring a quality connection, &eliminating the possibility of hot spots, damaged wires or loose connections.
• No cable stripping required, simply insert the jacketed cable into the entry port &tighten with a 1/2” 6 point socket.
• Turbo spacer allows tap side to remain open while you hand tighten the DIY above ground connector on the main wire (all models except 96102 &96104).
• Blue Rubber Insert recreates insulation when used on bare wire. Used to avoid any damage on neutral messenger. (Only on Models 96106, 96110, 96112, 96114).
• The bolt and all external parts of the connector are completely isolated from energized parts and the bolt is covered by the plastic shear-head. The installer has no contact at any point with an energized part.
• Can be installed on energized conductors, however, the tap must not be under load.
• Corrosion-free connection is good for hot, cold, damp, &salty connections. Properly installed the connector seals water-tight. This is accomplished by a sealant tank, that during installation is compressed and forces sealant out to protect the connection from oxygen and wate
