MVPower Multi-Tool Wire Stripper/ Crimper/ Cutter with Spring [並行輸入品]

商品説明

Material: stainless steel + plastic

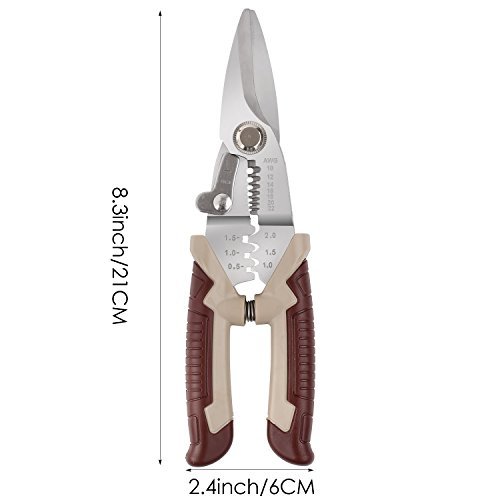

Dimension: 21 x 6 x 1.65cm/8.3 x 2.4 x 0.63 inches
Total Length: 210mm
The total width of the outside of handle: 60mm
Clamp steel plate thickness: 4mm
Clamps open width: 25mm
Center axis to top: 60mm
Weight:220g
Hardness: HRC55

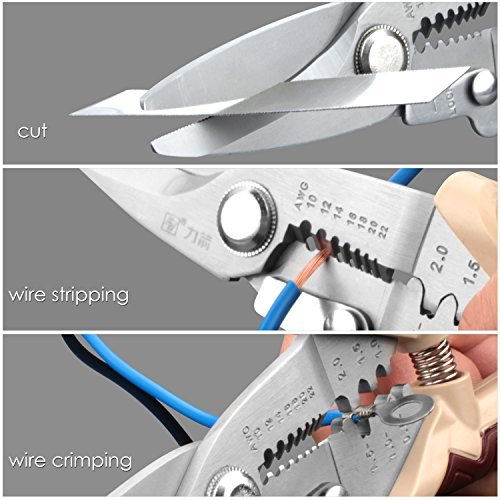

Wire Stripper Range
AWG 10 12 14 16 18 20 22
Metric core diameter mm φ2.6 φ2 φ1.6 φ1.3 φ1 φ0.8 φ0.6
Metric core cross-sectional area m?u 5.5 3.5 2 1.25 0.8 0.5 0.32

Terminal Crimp Range
Metric core cross-sectional area m?u 0.5-1.0 10-1.5 1.5-2.0
