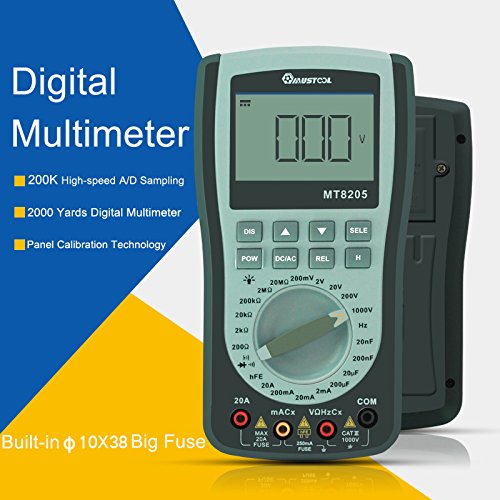

Mustool Mt8205 2 In 1 Digital Intelligent Handheld Storage

商品説明

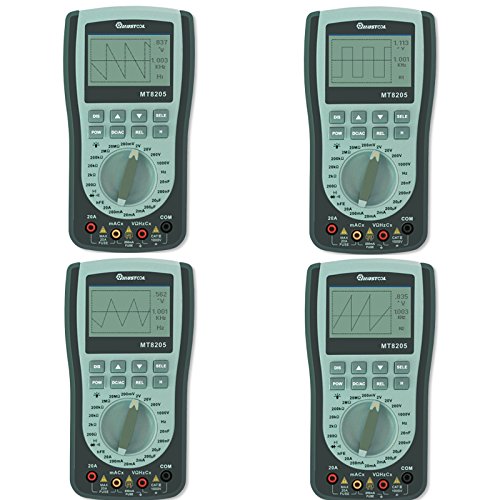

Display hold, storage / readout up to 10 waveforms and 100 sets of measurement values.
6,128X64 high contrast LCD with LED backlighting.
7, Can choose to automatically shutdown or continuous operation.
8, 20A AC and DC test, built-in 500V/20A explosion proof fuse.


Specification:

Display: 128 x 64 dot-matrix graphic LCD
Viewing area: 60mm x40mm
Backlight: White
Input Resistance: 10M
Battery: 4 x 1.5V AAA battery (Not included)
Automatic shutdown.
Power shortage prompts.
Power consumption: less than 20mA.
Storage capacity: DMM 100 groups of data, waveform 5 group records.
Environment: 0 C ~ + 40C; <75% RH
Storage conditions: -10C ~ + 60C; <90% RH
Dimensions: 186mm x 100 mm x 45mm
Weight: 370g (without other accessories)

Analog Bandwidth: DC AC ~ 10kHz
The maximum real-time sampling rate: 200ksps
DC voltage: 200.0mV ~ 1000V (0.75% rdg + 10dgt)
AC voltage: 200.0mV ~ 750V (1.0% rdg + 10dgt)
DC Current: 2mA ~ 20.00A (1.2% rdg + 10dgt)
AC current: 2mA ~ 20.00A (1.5% rdg + 10dgt)
Resistance: 200.0 ~ 20.00M (1.0% rdg + 5dgt)
Capacitance: 20.00nF ~ 200.0F (2% rdg + 10dgt)
Frequency: 2KHz ~ 200KHz (1.0% rdg + 5dgt),
Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA.
Continuity Test: determine resistance: about 100
Remote control Detection: 38kHz carrier frequency
Transistor Magnification: 30 ~ 1000 (annex)
Fuse rating: 5 20A, 250mA / 250V

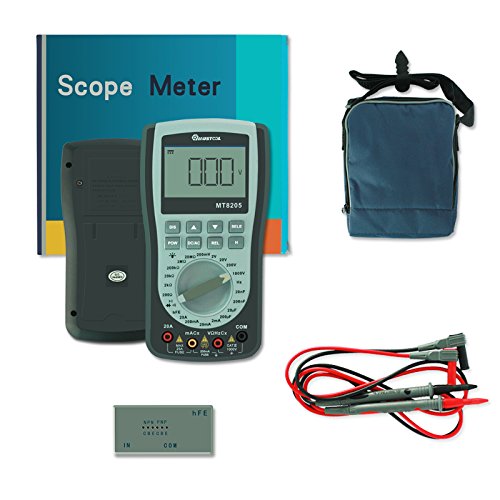

Package included:

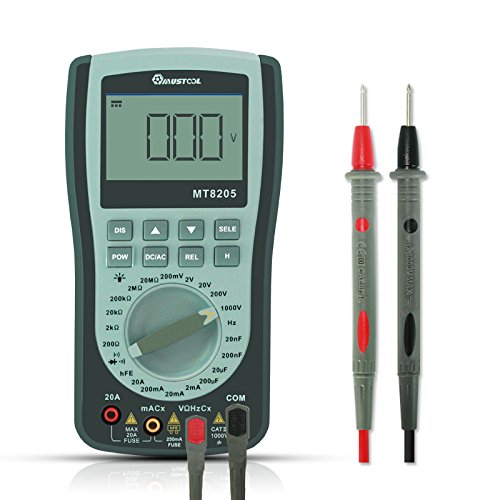

1 x MUSTOOL MT8205 Handheld Storage Oscilloscope Multimeter

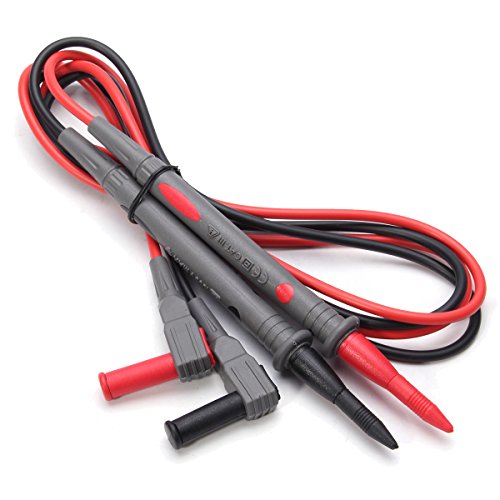

2 x Test Lead
1 x Portable Bag
1 x English User Manual

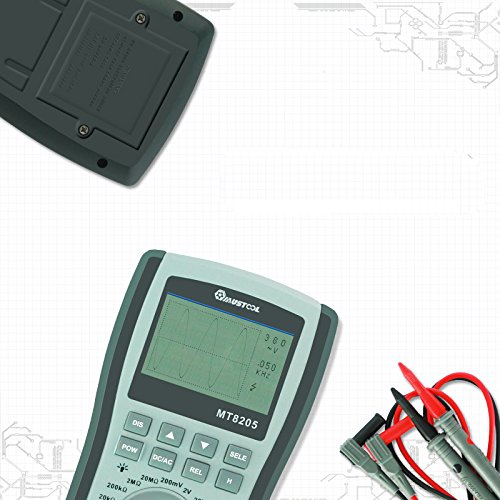

Detail Pictures:
