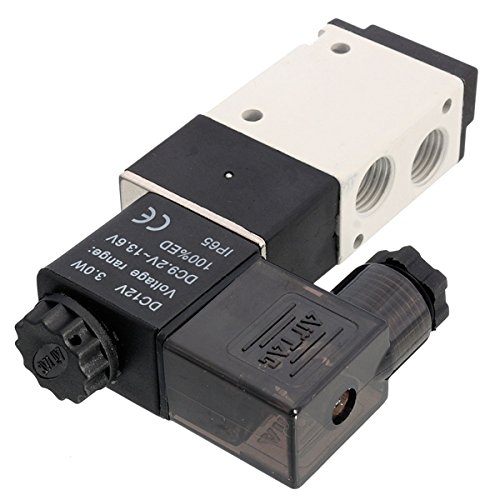

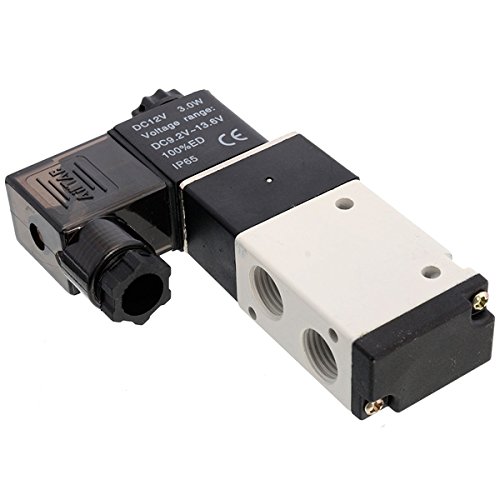

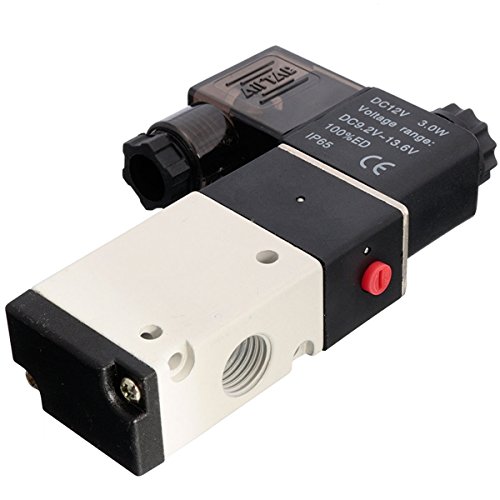

1/4 Inch Dc 12V Pneumatic Electric Magnetic Solenoid Valve

商品説明

1/4 Inch DC 12V Pneumatic Electromagnetic Solenoid Valve 3 Way 2 Position

Standard Specification
Model
3V210-08
Biggest Withstanding
Pressure
12kgf/c
Working Medium
Air(40 micron cleaned)

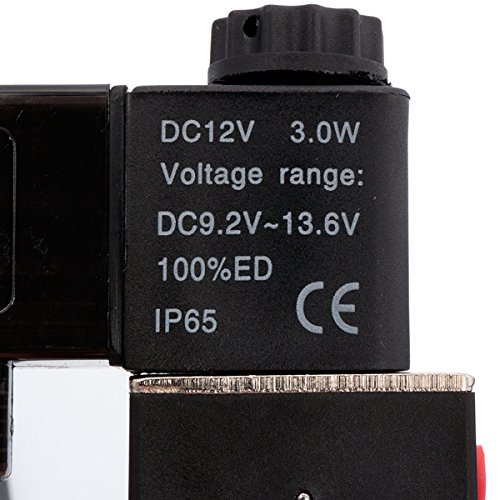

Power Consumption
DC12V:2.5W
Motion Pattern
Internal Pilot
Protection Class
IP65(DIN40050)
Adapter's Caliber
Air-in=Air Out=PT1/8
Air-in=Air Out=PT2/8
Air-in=Air Out=PT3/8

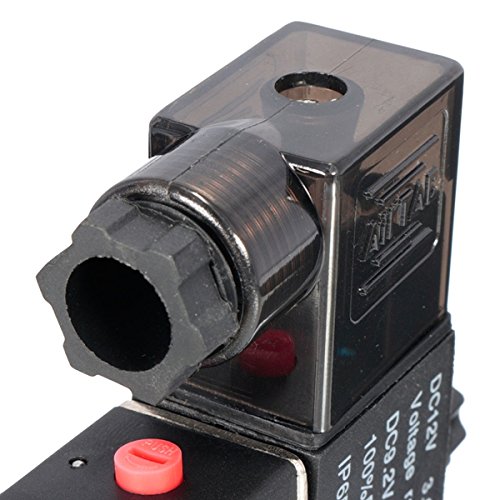

Electrifying Model
Box Type
The Position Countion
Three-mouth Two-position
Body Material
Al Alloy
Ambient Temperature
-5~60(23~140)
Highest Action
Frequency
5/sec
Effective Section Area
14(Cv=0.78)
16(Cv=0.89)
25(Cv=1.39)
30(Cv=1.67)
Insulation
Class F
Lube Cation
No Required
Voltage Range
-15%~+10%
Working Pressure
1.5~8.0 kgf/c
Response Time
0.05s

Package included:
1X Solenoid Valve
