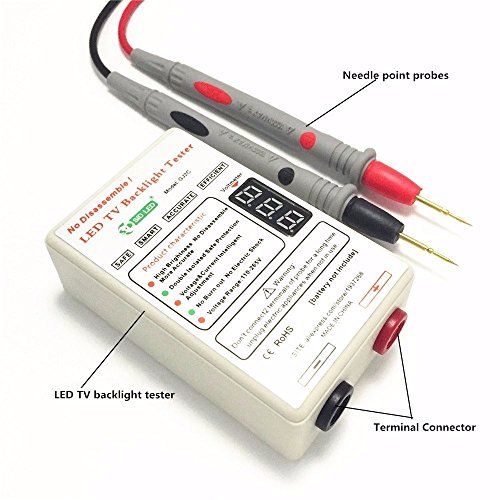

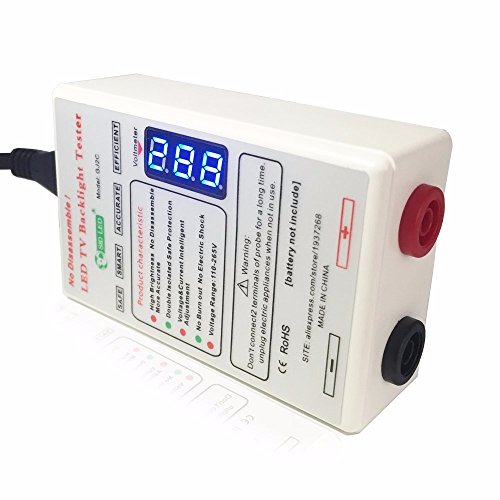

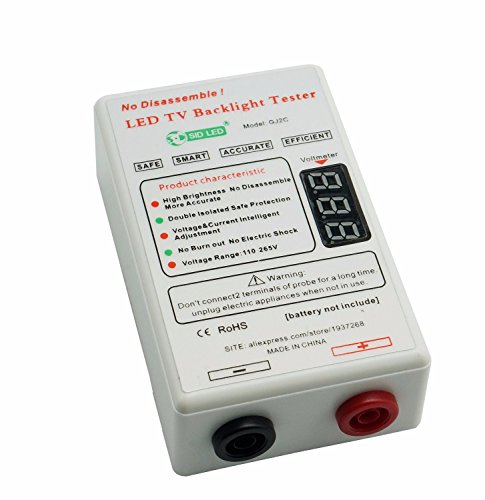

Sd Sid-Gj2C 0-300V Output All Size Led Lcd Tv Backlight Tester

商品説明

1.High Brightness No Disassemble More Accurate.
2.Double Isolated Safe Protection.
3.Voltage and Current Intelligent Adjustment.
4.Voltage Range:0-300V (slow boost safety design of soft start)


Main Application:

Testing the backlight of LED at any size Display the voltage, It can be tested in a long time, and will not damage the lamp beads .
If you are used to test the LED finished lamps, please disconnect the power supply before! Because it is likely to form a loop, resulting in abnormal test!

Additional Application:

1 can test the capacitance voltage.
2 can test the regulator voltage regulator.
3 lamp lamp plate voltage test value!

Testing Skills:

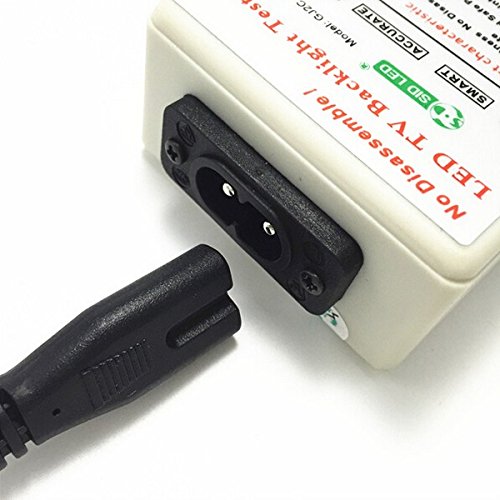

1. Plug in power, it can be used after 3to 5 seconds.
2. The soft start mode make the backlight getting brighter slowly.
3. No burn out, If you cant make sure the +and -, Dont connect the probes to the LED which be tested for a long time.

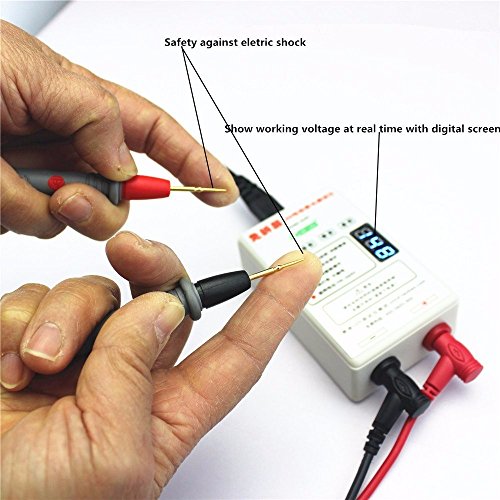

4. Open Ciruit Protection : Dont touch the output terminal of probes for a long time .Its safe for touch the probes in short time periods.
5. Double Isolate Design makes our tester safety with high strength and flame retardancy materials.
Single LED light bar backlight testing:

1:Make sure the anode and the acthode.
2:Connect the probes on the anode and the cathode.
3:Light up the Single LED light Bar Backlight.
4:Light up the Double LED Light Bar Backlight.

Packing includes:
1 x TD 0-300V Output Voltage All Size LED LCD TV Backlight Tester
2 x Table pen
NOTE: It's EU plug now, but we will send you a free adapter according to your country.
