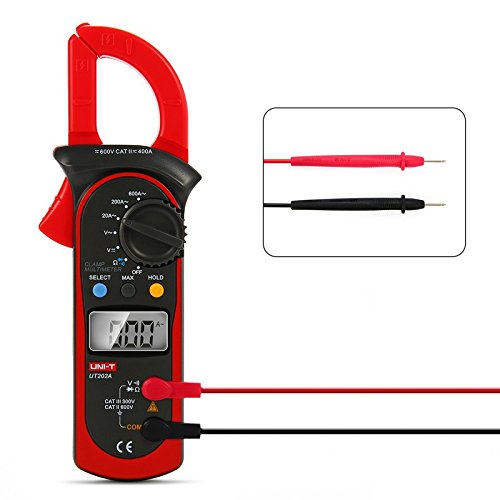

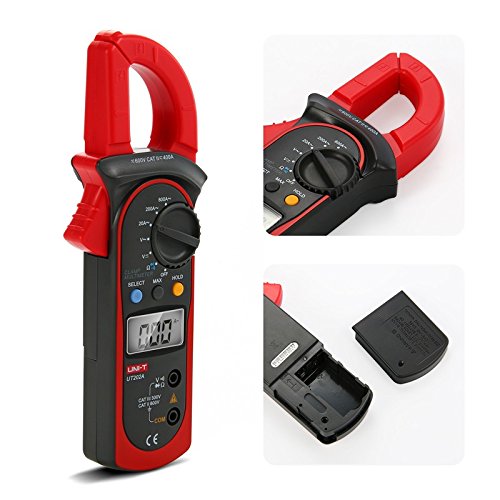

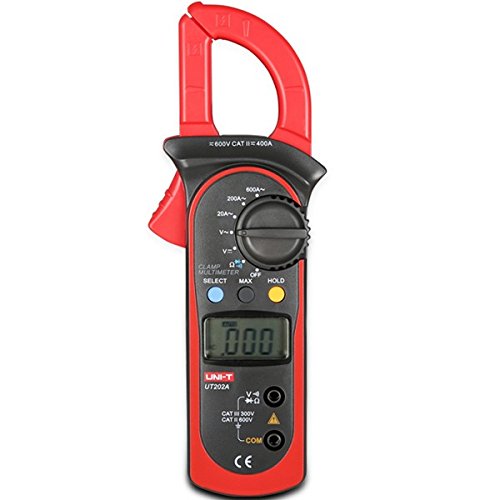

Uni-T Ut202A Handheld Digital Lcd Dc Ac Voltage Current Ohm

商品説明

Voltage Current Ohm Tester Clamp Meter Multimeter
UT202A is a stable, secure, and reliable 3 1/2 digit clamp meter. Whole circuit design to LSI double integral A / D converter as the core, the whole range of overload protection circuit, unique design makes it the superior performance of a dedicated electrical instruments.

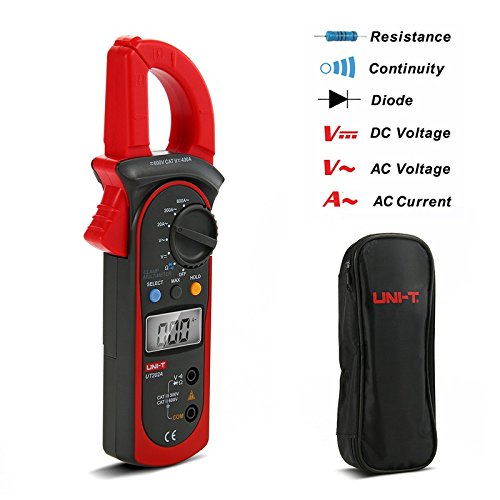

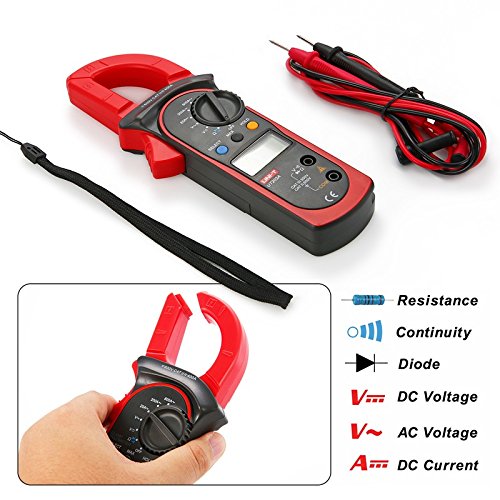

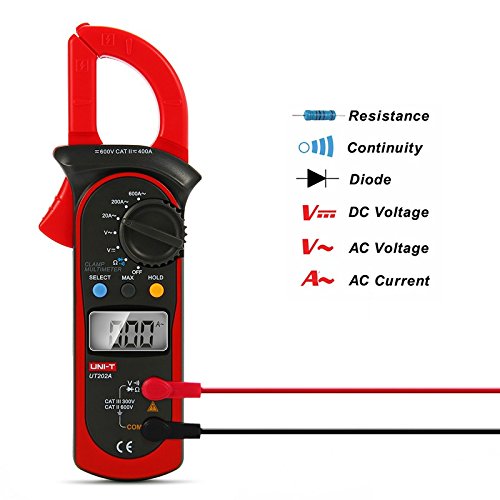

It can be used to measure the DC voltage, AC current, resistance, diodes, circuit continuity and so on.


Features:

1.Display Count: 2000
3.Jaw Capacity: 28mm
4.Input Impedance for DC V: Around 10M
5.AC/DC voltage, resistance, continuity & diode check
6.Manual Range + Data hold + Maximum/Minimum value measurement
7.Continuity Buzzer.
8.Low Battery Indicator.
9.Measurement update speed 3 times/second, compact and comfortable design.
11.Can be used for AC/DC voltage test, AC current test, electric current resistance, diode test, etc.(PS: CANNOT test DC current).
12.Can be used in places such as factory, school lab, home hobby, machine repairing, etc.


Specification:

1.Model: UT202A
2.AC Current (A): 20A/200A/600A (1.5%+5)
3.AC Voltage (V): 2V/20V/200V/600V (1.2%+5)
4.DC Voltage (V): 200mV/2V/20V/200V/600V (0.8%+1)
5.Resistance (): 200/2K/20K/200K/2M/20M (0.8%+3)
6.Display: LCD, max. 1999 digits, 35.6 18 mm
7.Power supply: 1x 9V 6F22(Not included)
8.MAX. Diameter for conductor: 26 mm
9.Product Net Weight: 220g
10.Product Size: 210mm x 75.6mm x 30mm
11.LCD Size: 35.6mm x 18mm
12. Product Color: Red and Grey


Package includes:

1 x UT202A Clamp Meter
1 x Test leads
1 x User manual
1 x Carrying pouch
