Ms8233D Pro Digital Multimeter Ac/Dc Ammeter Resistance Capacitance

商品説明

Features:

1.Over load protection: Used the PTC protection circuit for Resistance, frequency measurement Double Current Fuses.
2.2000F Capacitance and 200KHz Frequency measurement.
3.Make Sound of Continuity test more Loudly .
4.Back Light
5.DATA HOLD function
6.Low battery indication
7.Auto Power-OFF
8.Diode test


Specification:

1.DC Voltage: 200mV/2V/20V/200V+-(0.5%+2) 600V+-(0.8%+2)
2.AC Voltage: 2V/20V/200V+-(0.9%+3) 600V+-(1.2%+3)
3.DC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+3)
4.AC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+4)
5.Resistance: 200ohm/2Kohm/20Kohm/200Kohm+-(0.8%+2) 2Mohm/20Mohm+-(1.0%+2)
6.Frequency: 200kHz
7.Capacitance:2000uF
8.Diode check: Resolution: 0.001V, Will display the forward drop voltage.
Continuity check: If measured resistance less than 100, will buzzer is sounded. Sound loudly ,Easliy to hear.
9.Power Supply: 9V Battery(6F22 or 1604A Type) x 1pc (not include)
10.Size:140*70*33mm(Approx)

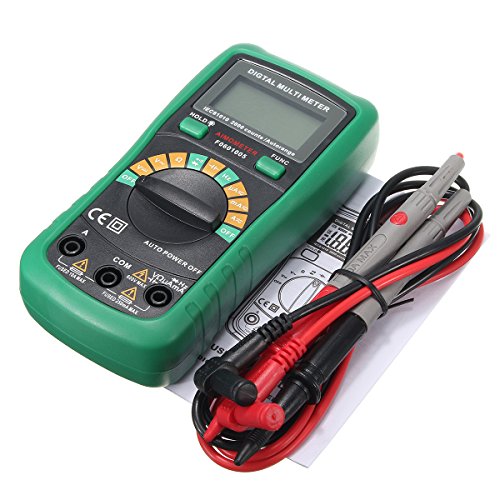

Package includes:

1 x MS8233D pro multimeter
1 x Test leads
1 x English User manual
