1Pcs 25Cm Multifunctional Pcb Ruler Measuring Tool Resistor

商品説明

Description:

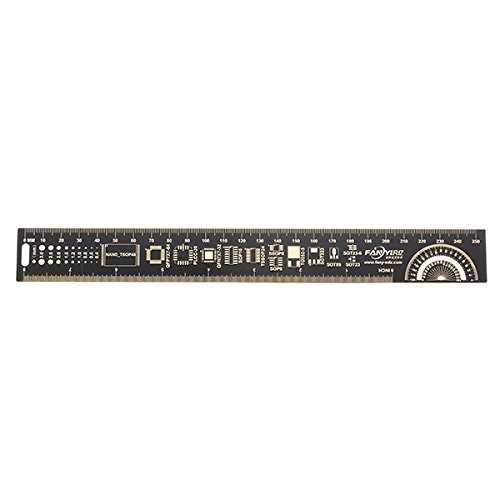

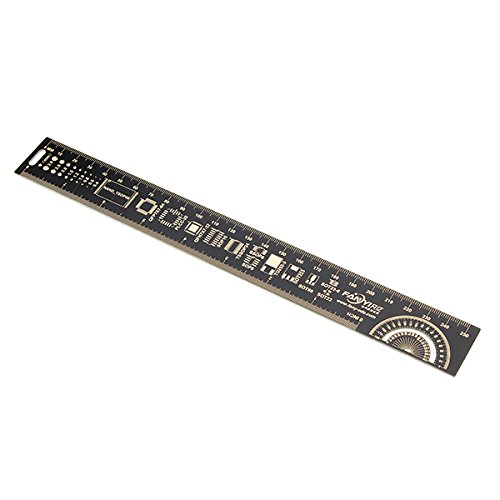

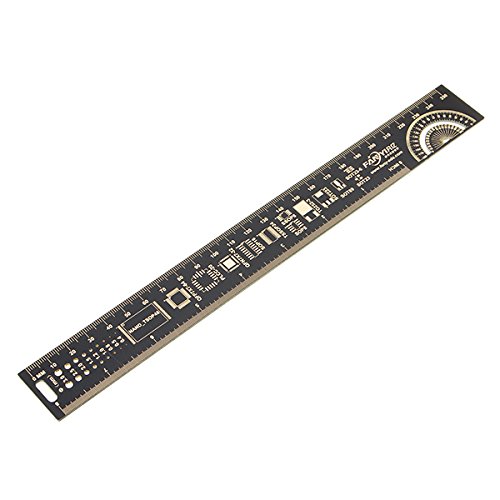

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

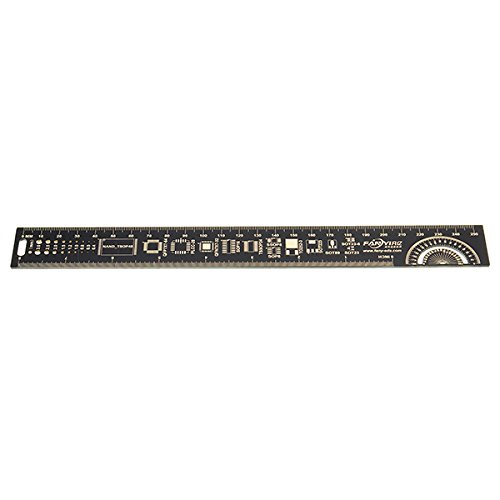

Positive Specifications:

The measurement length: 25cm
Measuring length: 10 inches

Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge

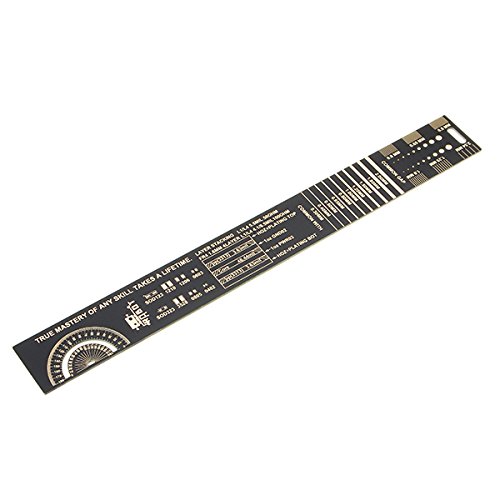

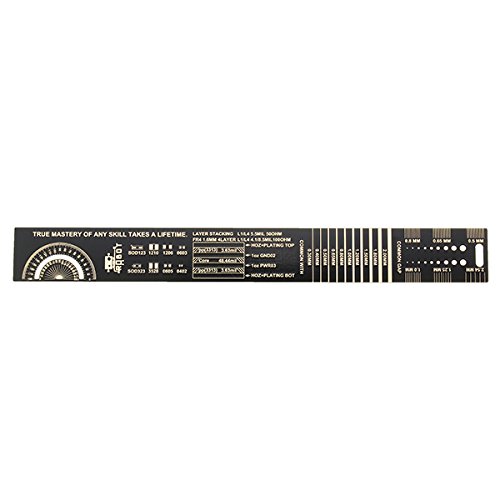

Back Specifications:

Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4


Package included:

1 x 25cm Multifunctional PCB Ruler
