NOYAFA NY-8108-M ケーブルテスター 誤配線テスター 8 Far-end Passive Test Jacks

商品説明

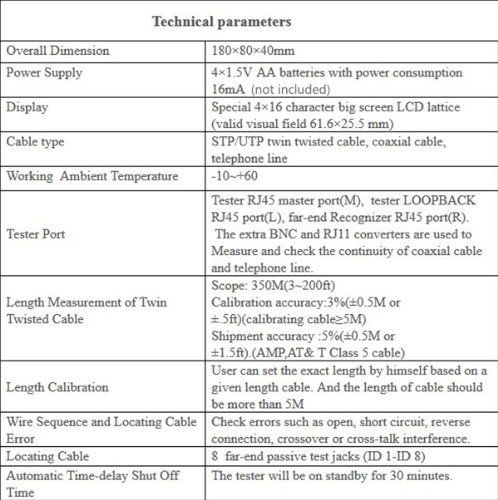

仕様:
ブランド: NOYAFA
型番: NF-8108-M
Power Supply: 4* AA 1.5V batteries with power consumption 16mA(付属しておりません)
Display: Special 4*16 character big screen LCD lattice(valid visual field 61.6*25.5mm)
Cable type: STP/UTP twin twisted cable, coaxial cable, telephone line
Working ambient temperature: -10C to +60C
テスター port: テスター RJ45 master port(M), テスター LOOPBACK RJ45 port(L), far-end Recognizer RJ45 port(R)(The extra BNC and RJ11 converters are used to Measure and check the continuity of coaxial cable and telephone line)
Scope: 350M(3ft to 200ft)
Calibration accuracy: 3%(+/-0.5M or +/-5ft)(calibrating cable>=5M)
Wire sequence and locating cable error: Check errors such as open, short circuit, reverse connection, crossover or cross-talk interference
Locating cable: 8 far-end passive test jacks
Automatic time-delay shut off time: 30 minutes(テスター standby)
SKU: X1IN10745

パッケージ内容:

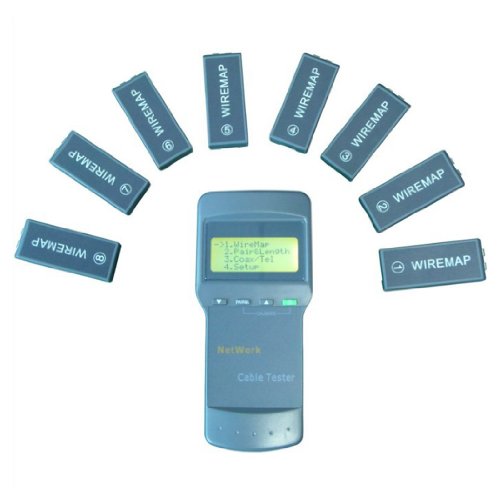

1 * テスター

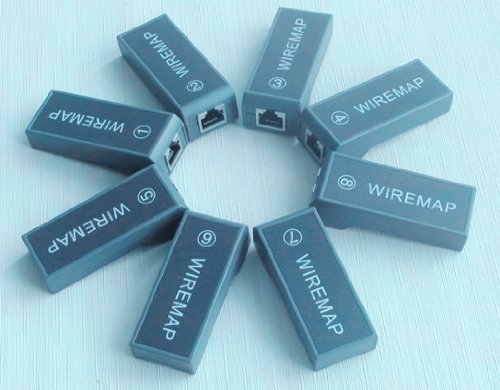

8 * Wiremaps
1 * 取り扱い説明書
1 * Kit 収納バッグ
1 * 収納ボックス
