NOYAFA NF-8108-M Cable Wire Fault Finder with 8 Far-end Passive Test Jacks [並行輸入品]

商品説明

Automatic time-delay shut off time: 30 minutes(tester standby). Features:
One person enough to locate the wire or connection error
Check wire errors in 5E, 6E, (open circuit, short circuit, jumper wire, reverse connection or cross-talk interference)
Make cable length measurement and determine the range of open circuit and short circuit
User can calibrate cable length dynamically and the accuracy can up to 95%
Locate cable and there are 8 far-end passive test jacks
Portable unit with long battery life (wait-case 50 hours)
Automatically time-delay shut off
Self-checking function and automatically compensates any change in battery capacity or ambient temperature
User can set the exact length by himself based on a given length cable, and the length of cable should be more than 5M

Specifications:
Brand: NOYAFA
Model: NF-8108-M
Power Supply: 4* AA 1.5V batteries with power consumption 16mA(not included)
Display: Special 4*16 character big screen LCD lattice(valid visual field 61.6*25.5mm)
Cable type: STP/UTP twin twisted cable, coaxial cable, telephone line
Working ambient temperature: -10C to +60C
Tester port: Tester RJ45 master port(M), tester LOOPBACK RJ45 port(L), far-end Recognizer RJ45 port(R)(The extra BNC and RJ11 converters are used to Measure and check the continuity of coaxial cable and telephone line)
Scope: 350M(3ft to 200ft)
Calibration accuracy: 3%(+/-0.5M or +/-5ft)(calibrating cable>=5M)
Wire sequence and locating cable error: Check errors such as open, short circuit, reverse connection, crossover or cross-talk interference
Locating cable: 8 far-end passive test jacks
Automatic time-delay shut off time: 30 minutes(tester standby)

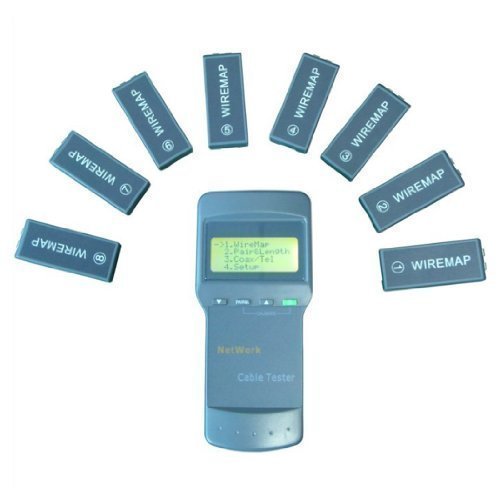

Package includes:
1 * Tester
8 * Wiremaps
1 * Instruction manual
1 * Kit bag
1 * Colored box
