Stainless Steel Liquid Level Controller Horizontal Float Switch (Usa)

商品説明

Description :

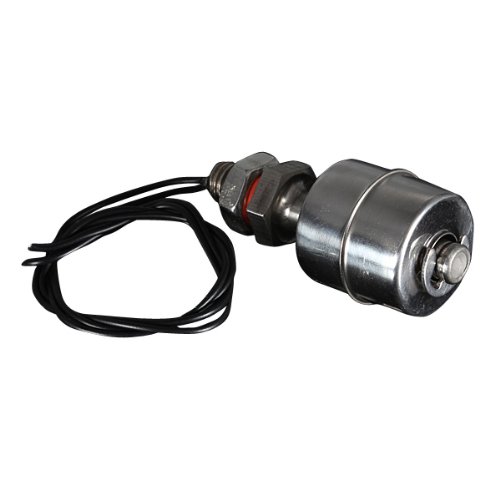

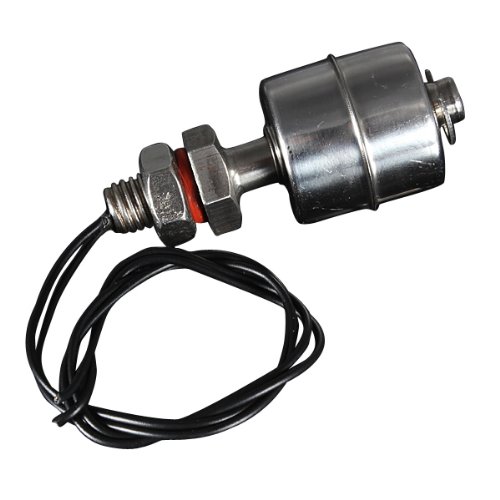

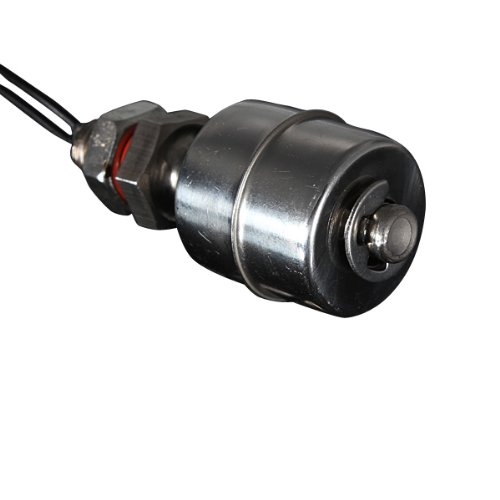

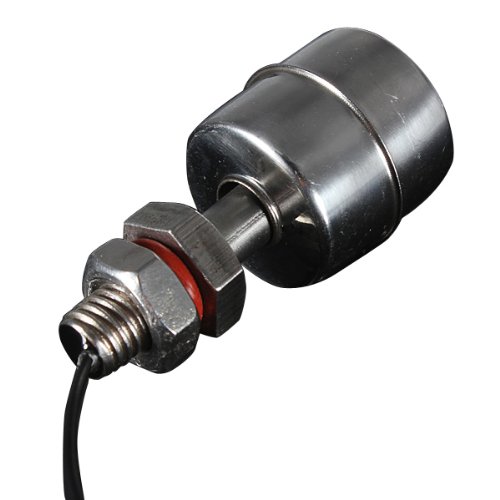

Stainless Steel Liquid Level Controller Horizontal Float Switch
This is a Mini stainless steel float switch, contains no mercury.
This float switch is a device used to sense the level of liquid within a tank, the switch may activate a pump, an indicator, an alarm, or other device.
Simple structure, easy installation liquid level controller.
It does not have a complex circuit, will not be disturbed, as long as the material selection, liquid, pressure and temperature can be used in any environment.
Light weight and simple working principle, high reliability.
The versatility of this vertically mounted controller means that it can be installed either at the top or base of your tank, depending on whether you wish to detect the waters rise or fall.
The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other walks of life level control and alarm.

Specification :
Max contact rating: 10W / SPST
Max switching current: 0.5A
Max carry current: 1A
Max switching voltage: 100V DC
Max breakdown voltage: 220V DC
Max contact resistance: 100m
Woring temperature: -30 C to +125 C
Float ball material: SUS304
Body material: SUS304
Cable length: About 25 cm

Package includes :
1 x Stainless Steel Vertical Water Level Switch
