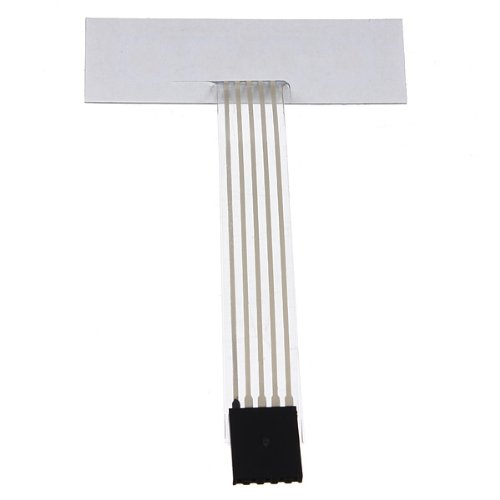

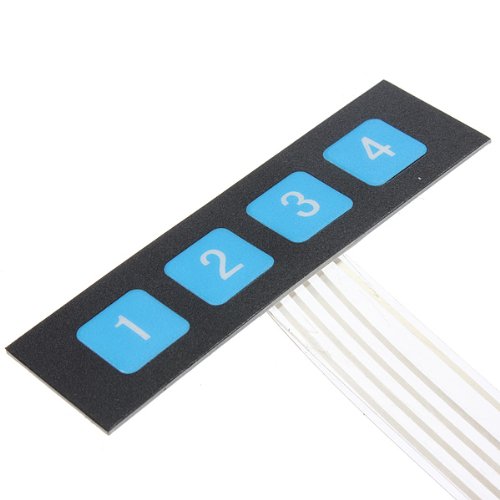

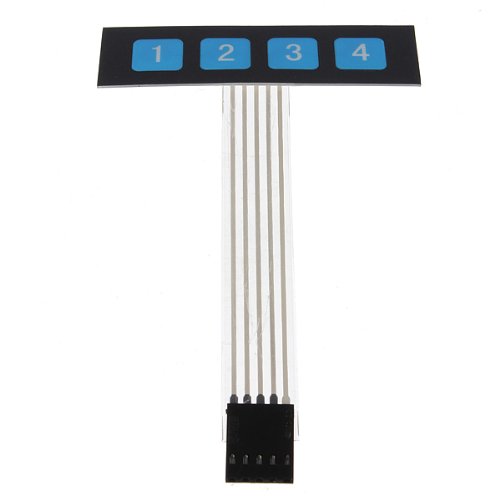

DC 4 Key Matrix Membrane Switch Control Keypad Keyboard Super Slim Pad With LED

Specification:
Mount style: self-adherence
Pad size: 69 x 20mm
Cable length: 4.2inch/106mm (include connector)

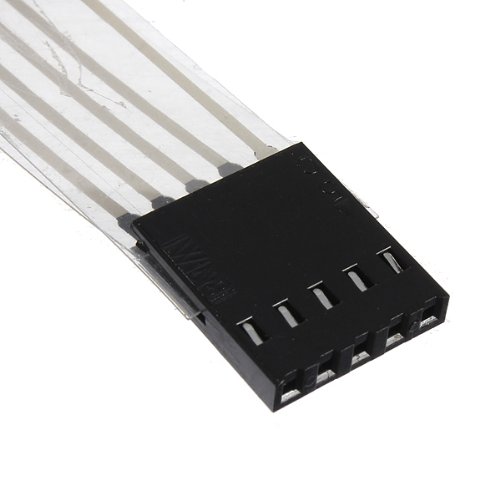

Connector: DuPont 5 pins
Mount style: self-adherence
Circuit rating(max): 3.5V(DC) 100mA,1W
Contact resistance: 10 - 500
Insulation resistance.: 100M 100V
Electric shock jitter: <5ms
Dielectric strength: 250VRms (50 - 60Hz 1min)
Life expectancy: 1 million times
Operation temperature: -20 C to +40 C
Storage temperature: -40 C to +80 C
Storage humidity: 70% - 90%

Package included:
1 x 4 key matrix membrane switch keyboard
