OSEPP Gyroscope Sensor (Arduino Compatible) [並行輸入品]

商品説明

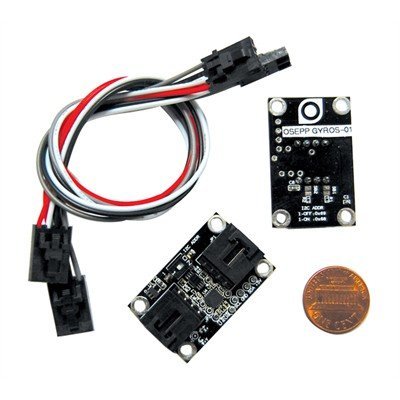

OVERVIEW The OSEPP Gyroscope Sensor Module is a 3-Axis gyroscope sensor. It utilizes the InvenSense MPU3050 Motion Processor Unit providing a full-scale range from +/- 250??/s up to +/-2000??/s of angular rate measurement while providing the highest robustness supporting 10 000 g of shock. The module uses the I??C interface for data communication. The I??C lines are packaged with the power and ground lines into a modular connector, which allows easy plug and play operation. There are two connectors on the module to enable daisy chaining of multiple I??C devices together. The OSEPP Gyroscope Sensor Module combined with the OSEPP Accelerometer Sensor Module can deliver a complete 6-axis sensor for full motion detection. HIGHLIGHTS ??? I??C Addresses (7-bit): 0?-68, 0?-69 ??? Form Factor: 23 mm x 36 mm ??? Power Consumption: 30.5 mW (Active); 0.025 mW (Sleep) ??? Connector Pin Definition: Pin 1: Power, Pin 2: I??C Data, Pin 3: Ground, Pin 4: I??C Clock
