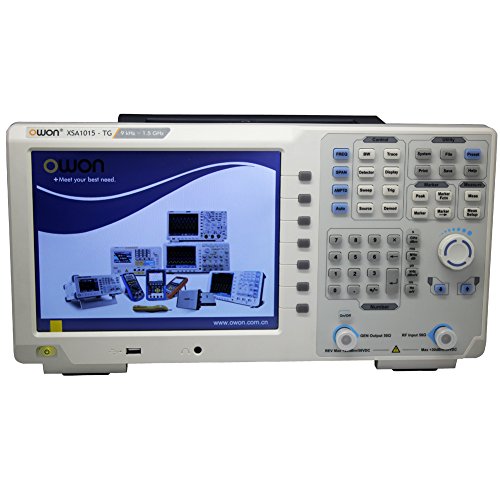

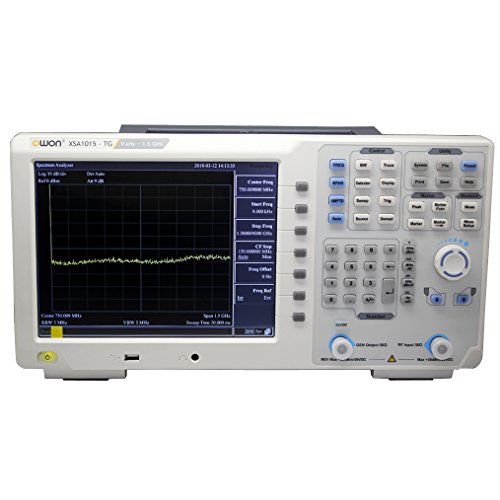

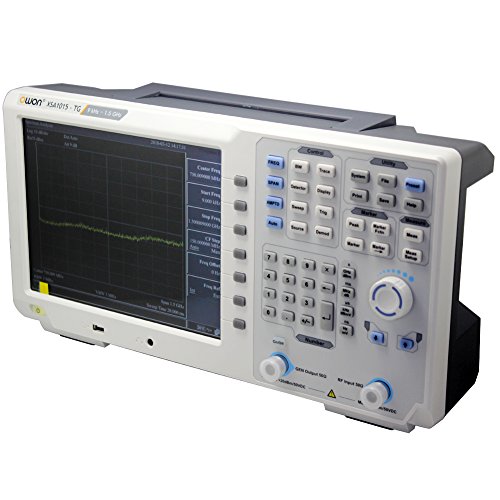

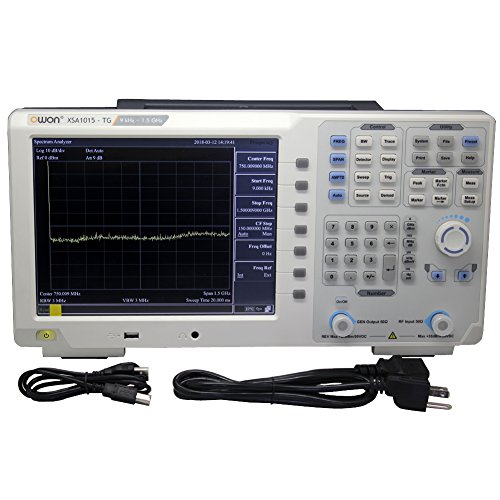

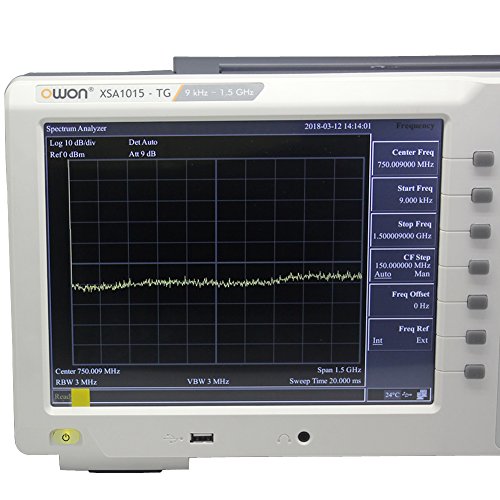

OWON XSA1015-TG Spectrum Analyzer 9 kHz -1.5 GHz 10.4" touch screen Display

商品説明

XSA1015 Spectrum Analyzer

Main Features
- Frequency Range from 9 kHz up to1.5 GHz
-150dBm Displayed Average Noise Level
- Phase Noise -85dBc/Hz @1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)
- EMI Pre-compliance Test Kit
- 1.5 GHz Tracking Generator Kit
- 10.4 inches display
Frequency span
Range 0 Hz, 100 Hz to maximum frequency of device
Accuracy ± span / (swept points -1)
Internal reference
Reference frequency 10.000000 MHz
Reference frequency accuracy ±[(days from last calibrate × freq aging rate) + temperature stability + initial accuracy ]
Temperature stability <2.5ppm (15℃ to 35℃)
Aging rate <1ppm / year
Sweep time and triggering Span range

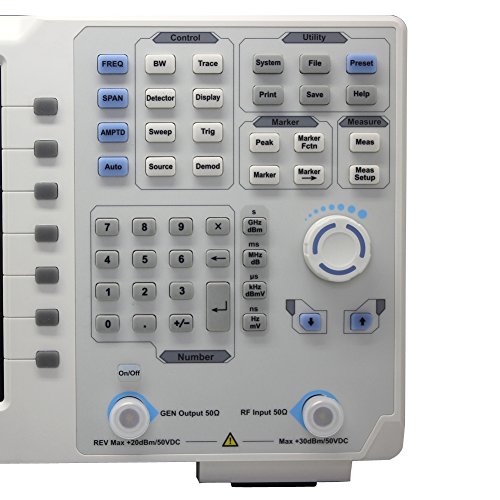

100Hz≤SPAN≤3GHz 10ms to 3000s zero sweep width 1ms to 3000s Mode Continue, single Trigger Free run, video, external Tracking generator Output frequency range 100 kHz - 1.5 GHz Output power level range -30 dBm - 0 dBm , Output power level resolution 1DB Output flatness +/-3 dB Maximum safe reverse level Average total power : 30 dBm, DC : ±50 VDC Inputs and Outputs Front panel RF input connector 50 Ω, N-type female Front panel track generator output 50 Ω, N-type female 10 M reference input 50 Ω, N-type female

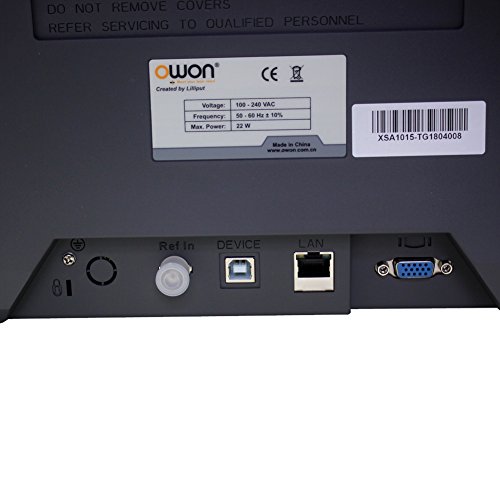

Communication port USB HOST, USB DEVICE, LAN, earphone port, and VGA General techincal specification Display TFT LCD, 10.4 inches Weight 5 kg Working temperature 0 - 40 ℃ Storage temperature -20 °C to 60 °C Power 100V - 240V 50/60Hz
