第cnc3018ミニDIYの使用管理はgrbl制御ソフトとさん軸ミーリング機のPCB基板の彫刻のPVB木材ルータ、NC 3018

商品説明

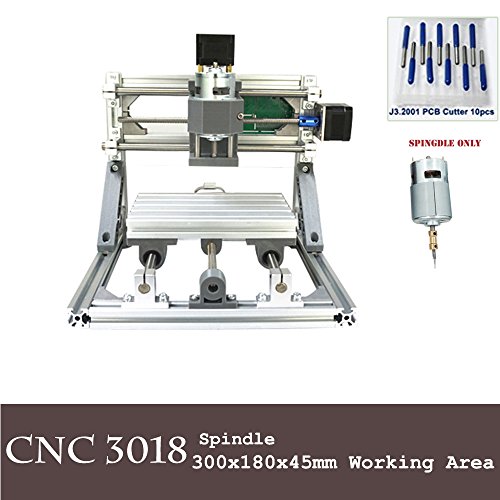

Model CNC3018
Working Area 160 x 100 x 45mm
Machine Size 210 x 120 x 70 (Motors Exclusive)
Software Grbl 0.9j
Supported Windows XP, WIN 7
Supported Graphic PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Drill Bits: Diameter 3.17 mm, Tip 0.1mm; Length 30mm, 20 Degree
Operating Voltage： 110V / 220V
Interface： USB
Screw： Stainless Steel Lead Screw Diameter 8mm
Stepper Motors： 3pc Two-Phase Step Motor 1.3A 0.25Nm
Power Consumed： 24V 5.6A Power Adapter
Table： 1610 Profile (160x100)

Parts Description:

T8 T-Screw Stainless Steel Lead Screw Diamter 8mm
Brand New High Quality Motor
Laser Spindle with Diameter of 45 mm
Drill Bits: Diameter 3.175mm tip: 0.1 mm angle: 20.c
EU Adapter
Material CNC works on
With the Metal Drills from Package, the engraver can engave on Soft Metal
PCB Board
ACRYLIC
Plastics
Woods
Application Software: GRBL CONTROLLER
