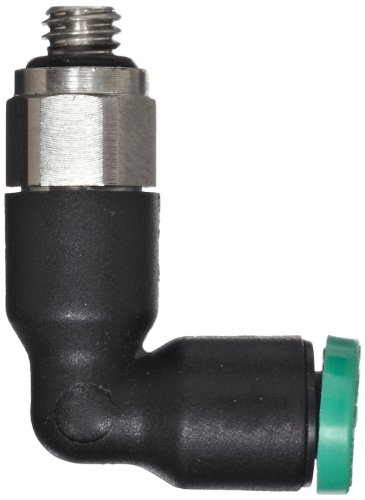

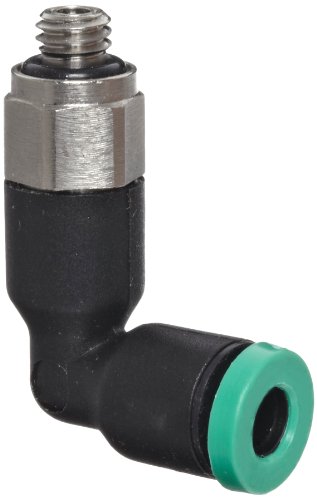

Legris 3169 04 20 Nickel-Plated Brass Push-to-Connect Fitting, 90 Degree Extended Elbow, 5/32 or 4 mm Tube OD x #10-32 UNF Male by Parker Legris

商品説明

90-degree extended elbow for connecting a tube to a female threaded connection with enough height to pass over a Legris 3199 series elbow;Push-to-connect tube connection on one end and male UNF threads on the other end;Nickel-plated brass construction;Handles pressures up to 290 psi (20 bar), operating temperature range of-20 to +80 degrees C (-4 to +176 degrees F), and a vacuum capability of 755 mm Hg;Meets RoHS and ISO 14743 technical specifications
