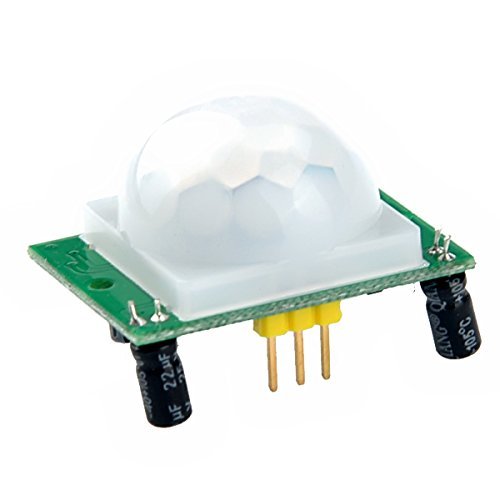

Pixnor HC-SR501 Human Body Pyroelectricity Infrared PIR Motion Sensor Module [並行輸入品]

商品説明

Features
- Model: HC-SR501.
- Color: as shown in the pictures.
- Material: durable copper-clad laminate (CCL).
- Dimension: about 3.2cm x 2.4cm (Lx W).
- 100% brand new and high quality Human Body Pyroelectricity Infrared PIR Motion Sensor Module.

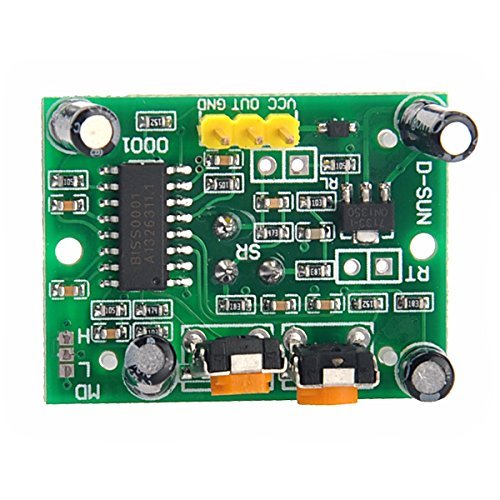

- Infrared sensor with control circuit board.
- The sensitivity and holding time can be adjusted.
- Working voltage range: DC 5V-20V.
- Current drain: less than 60uA
- Voltage Output: 3.3 V (high) 0V (low).
- Detection distance: less than or equal to 7 meters.
- Detection range: less than 120-degree.
- Delay time: 0.3s-18s (can be adjusted)
- Blockade time: 2.5s (default).
- Trigger mode: L (unrepeatable trigger), H (repeatable) (default).
- Work temperature: -15 C to 70 C
Applications
1. Security Products
2. the human body sensors toys
3. the human body sensor lighting
4. industrial automation and control, etc.
Notes

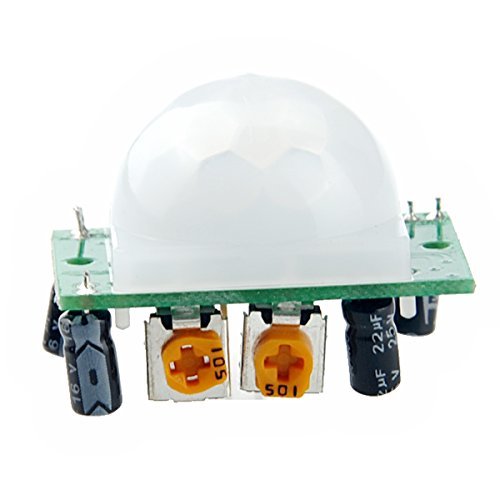

- The potentiometer clockwise to adjust the distance, sensing range increases (about 7 meters), on the contrary, sensing range decreases (about 3 meters).
- Delay adjustment potentiometer clockwise rotation, sensor delay longer (about 300s), the other hand, induction by the short delay (about 5S).
--------------------------------------------------------
Package Including
1 * HC-SR501 Human Body Pyroelectricity Infrared PIR Motion Sensor Module
