CNC 3020 300w 3 Axis Engraver with USB Port 3D Drilling Router DIY cnc3020 Wood Carving Engraving Machine Engraver Milling Machines Kit

商品説明

This Kit CNC3020 (300W with 3 Axis and USB Port controller) is a desktop CNC machine, designed for processing standard level of engraving, suitable for both Production & Amatuer Use

APPLICATION & MATERIAL
-Prototype Building / Model Making / PCB / Adverstising Signs / Artwork / Crafts / Aircraft Models / RC Model parts / Jewelry: Rings / WoodArt / Souvenirs making
-Non-Metal: WOOD / PMMA / plastic /MDF board / native wood / PVC / Acrylic / More ...
- -Metal Material : Soft Metal as Bronzing / Aluminium / Alloy / Gold / Silver / Steel/ Iron / Stainless steel / Titanium / Tungsten and more ...

PARAMETER
Power: 300 W

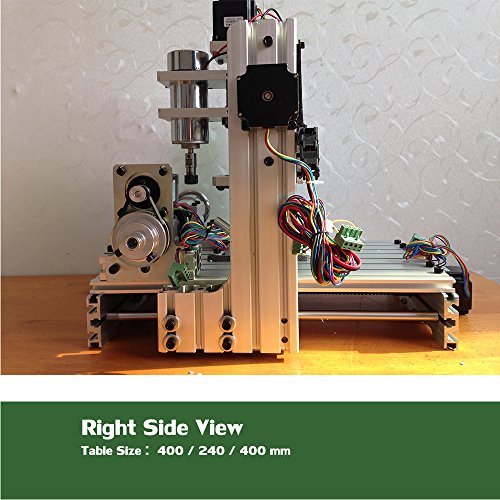

Table Size: 400 / 240 / 400 mm

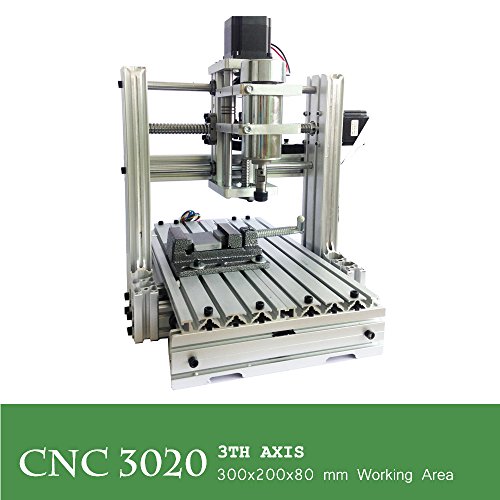

Working Area: 300x200x80 mm
Spindle Speed : 0-9000 / RPM adustable
Precision: 0.05mm
Interface: USB
OS: Win32 & Win64
Speed Control Mode: By Mach3
Cooling: Air
Driven Motor :57 step motor
Power Supply: AC 360W , DC 36V 10A
Output Voltage: 220v / 110v

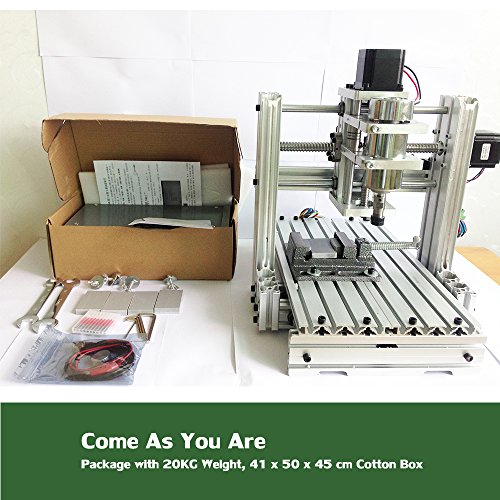

Package Weight : (3 Axis , 20 KG ; 4 Axis: 23KG)
Rotary A axis: Reduction Ratio 1:6, center height: 50mm/ Default 3-Jaw Card
Tailstock: Center Height: 50 mm, Scalable within 50mm
Lathe structure：6061/6063 Aluminium alloy
X,Y,Z axis: High precision 1605 Ball Screws
Protection：Emergency stop button

MECHNICAL PARTS DESCRIPTION
Rack| Gantry Gate| Z axis : 15MM, 30MM, 12MM thick aluminum
12MM optical axis: 6 pcs
12MM linear bearings: 12 pcs
Universal end bearing 3 pcs
High strength hexagonal screws: 80 pcs

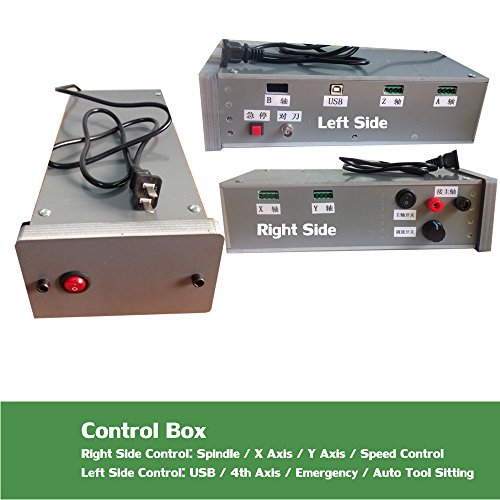

ELECTRICAL PARTS:

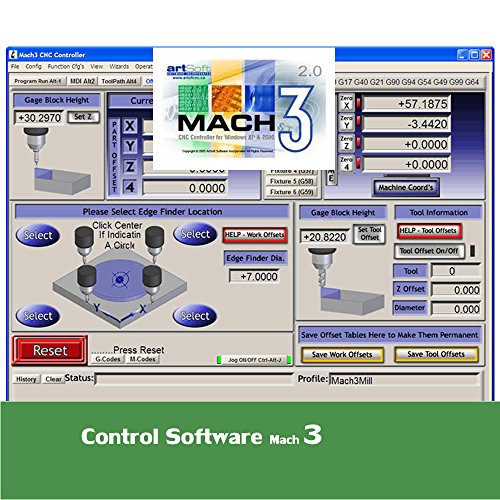

Operating software USB-MACH3
Driver: Toshiba 6560 drive 3A inside
Spindle power supply : 1pcs
Spindle speed plate 1 pcs

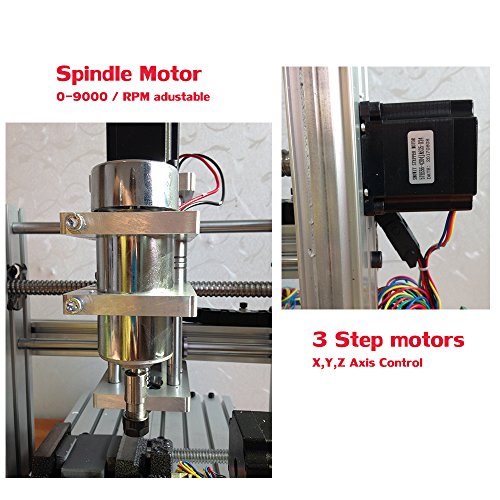

57 stepper motor 3 pcs
300W electric spindle 0-9000 turn stepless speed regulation
