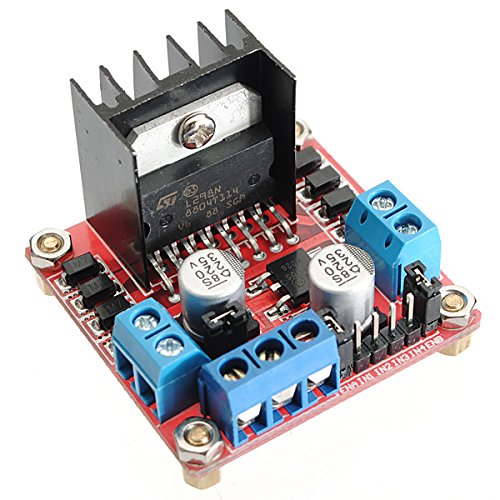

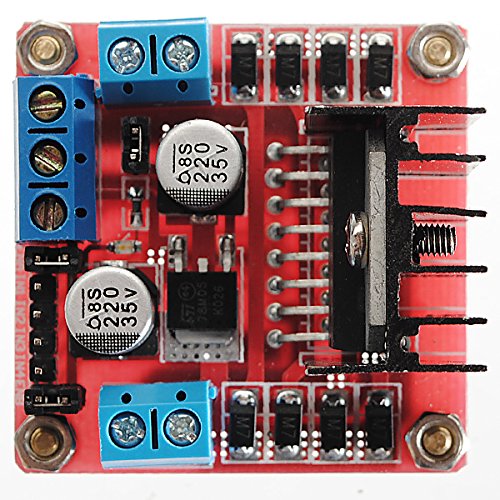

geekcreit\u00ae l298n dual h bridge stepper motor driver board

商品説明

Description:

Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g

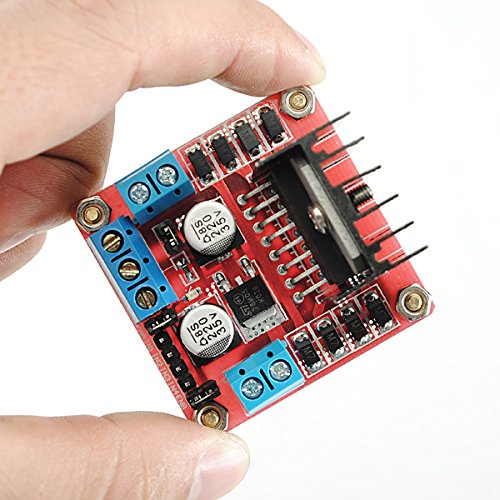

Size: 43 x 43 x 27mm

Note:

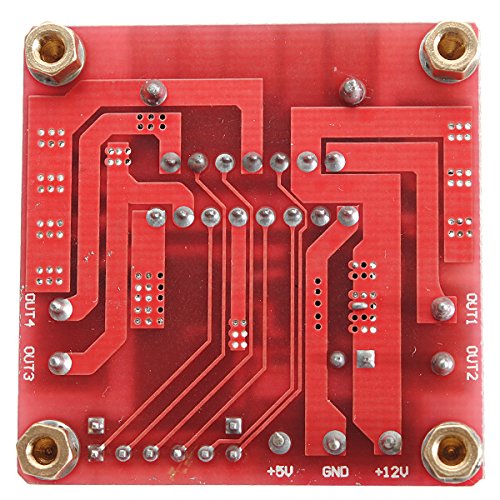

This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.

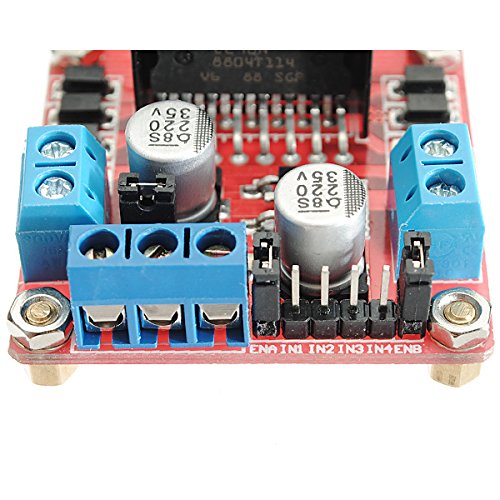

When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN4 control OUT3 OUT4


Note: Package is not included the screws.


Package included:


1 x 236 L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino
