daniu 200mm stroke 750n load mini electric actuator linear

商品説明

Features :

Reliable performance.
Stable running.
The same characteristic of push and pull.
Good environment adaptability.
The low noise design, noise level below 65dB.
Multiple Purpose Applications Liner Actuator.
Commonly Used In Automotive, Medical Devices and Engineering Industry.
The liner actuator is widely used in number of industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt - ability ect.



Specification :

Material: Aluminum Alloy
No-load current: <1A
Input Voltage: DC 12V

Stroke
Length: 200mm(7.87”)
Max Push Load: 750N\/165lbs
Speed: 10mm\/s
Duty Cycle: 20%
Operating frequency: 20%
Protection class IP54.

Application
Autos.
Solar tracking system.
Agricultural machinery.
The wedding system.
Industrial electric lifting system.
The medical electric bed, surgical bed, traction bed.
Electric equipments: Electric sofa, Electric lifting lever, Electric booth, Electric sunroof, ect.
Chair for medical use: Electric wheelchair, Massage Chair, Dental chair




Package includeds :

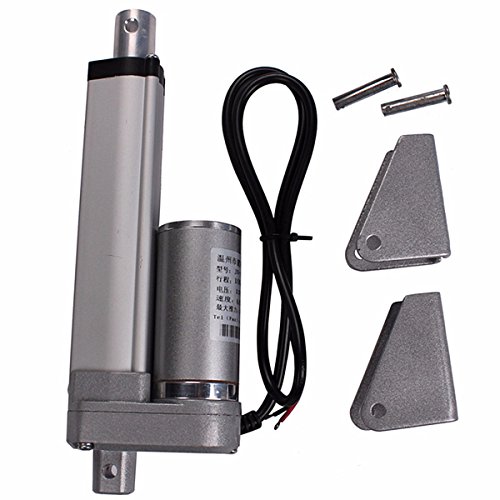

1 x Linear Actuator Motor
