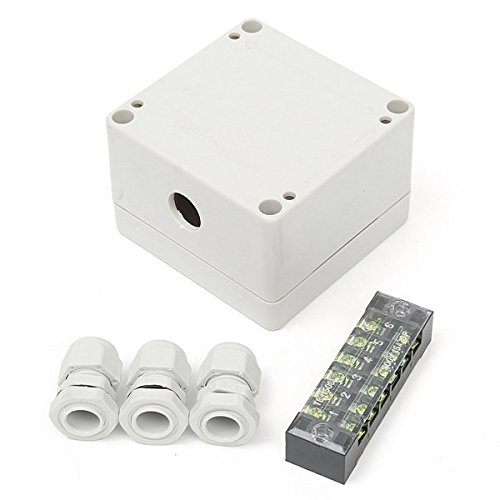

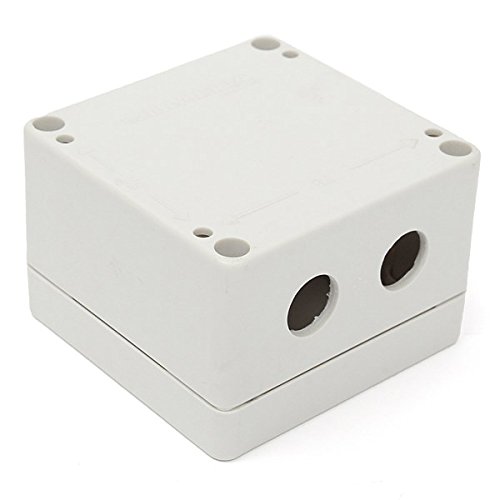

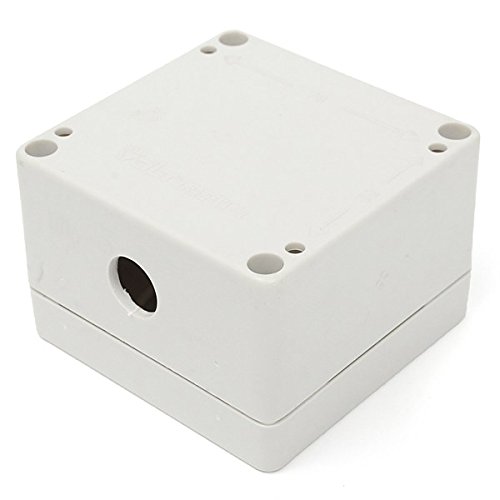

Waterproof Enclosure Electrical Junction Case PG9 Terminal Outdoor Cable Box

Specification:

Size: 83x81x56mm

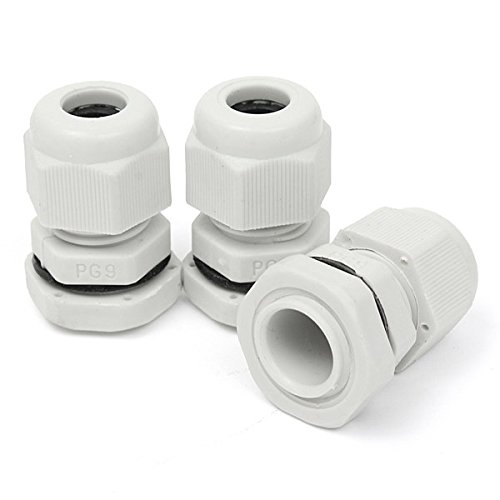

Supporting connector: 3 PG9 waterproof connector with a gasket
Supporting hole: Three hole diameter of about 16mm

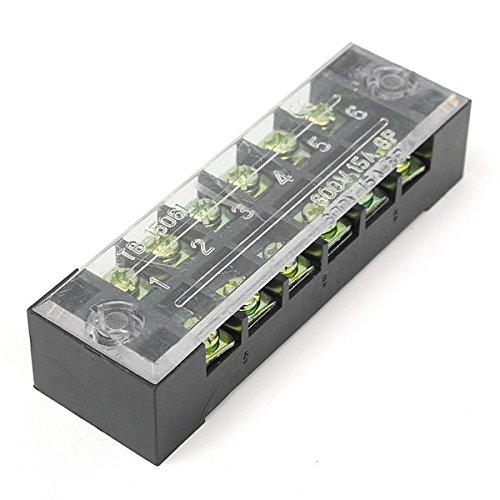

Supporting terminal: A TB1506 terminal 15A Crimping 2.5 square
Material: ABS
Terminal model : TB-1506, Current: 15A, Voltage: 600V.

Feature:
Advantages: Raw materials, reliable, waterproof grade: IP66, on the outside, no water.
Mounting post using internal rotation of the nut type. Better fixed cover.
Usage: waterproof junction box is mainly used for indoor and outdoor electrical, communications, fire fighting equipment, iron and steel smelting, petrochemicals, electronics, electricity, railways, construction sites, mines, quarries, airports, hotels, ships, large-scale factory equipment, pollution treatment environmental and other facilities.
Installation:
(1) Inside installation: inside the box for the component mounting board or rail bosses.
(2) External installation: can be fixed directly to the wall through the mounting holes at the bottom of the cartridge body (by the four corners of the box, with screws or nails fixed directly on the wall or board).

Package included:

1 x Waterproof Outdoor Cable Box
