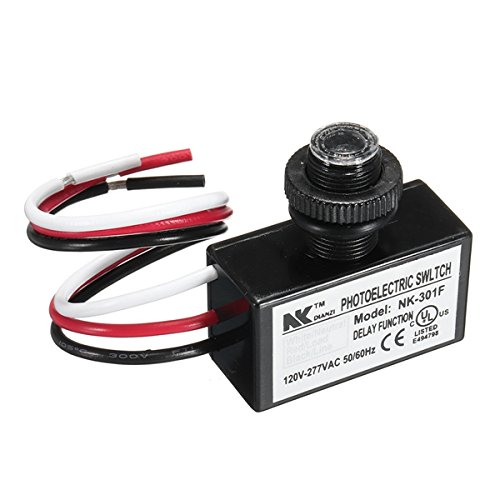

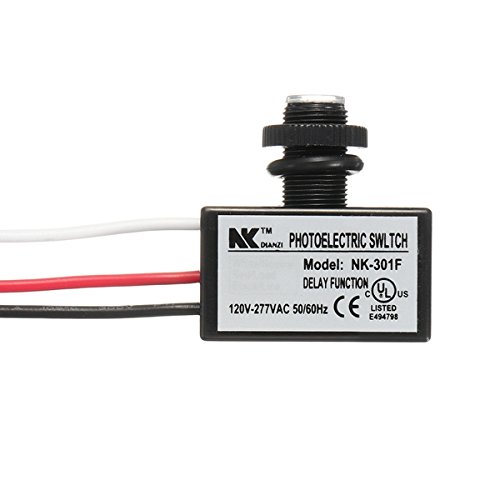

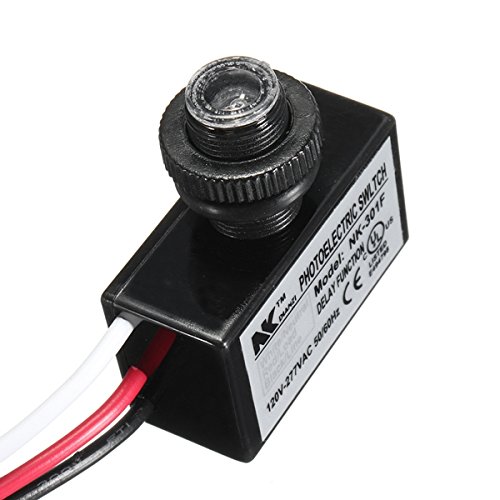

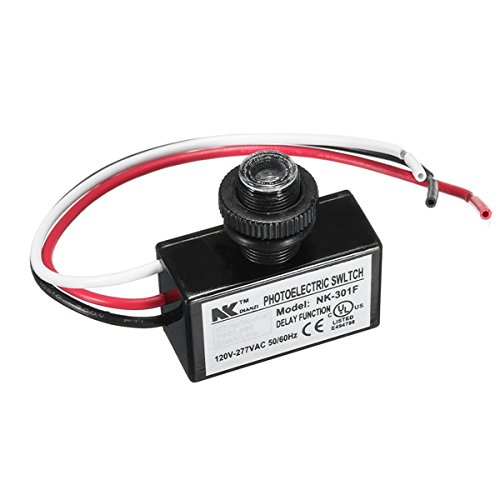

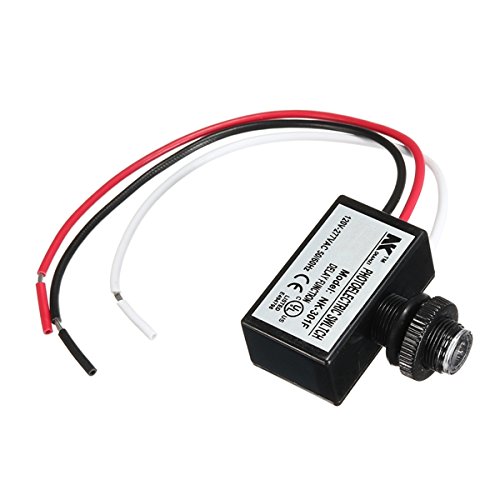

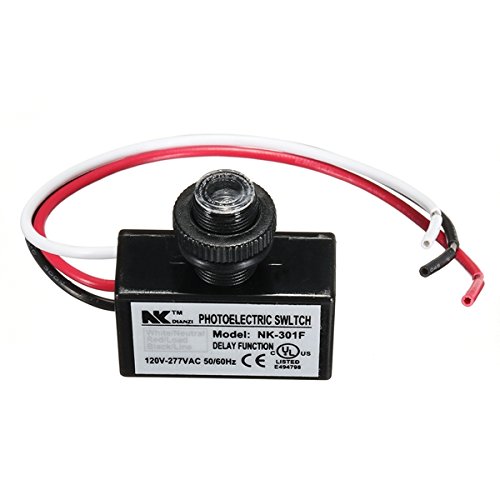

ac 80-277v photoelectric switch photocell dusk to dawn button

商品説明

Specifications:
Voltage Range: AC 80V~277V
Rated Voltage: AC 120V \/ 220V
Rated Load: 200W \/ 400W
Rated Frequency: 50 \/ 60Hz
Power Consumption: 0.5 Max
Sensitivity: 10-20LUX On \/ 40-70LUX Off
Anti-jamming Delay: About 12 Seconds
Ambient Temperature: - 25\u2103 ~ + 70 \u2103
Relative Humidity: 99% RH
Inductive Head Rain Proof Grade: IP65
Working Life: More Than 5000 Times
Size(L x W x H): 35 x 20.8 x 14.8mm
Lead Length: 150mm (AWG#18)

Features:
CE Certification, UL Certification.
Small volume light controller is easy to install.
Save energy, safe and reliable, long service life.

This photocell sensor is perfect for street lights, wall packs, barn lights and any other outdoor fixture that you need to have a dusk to dawn feature.
Internal IC import components, program control circuit anti-interference design, outdoor same light perception conditions, multiple sensors synchronous opening, induction precision, high sensitivity.
Wiring method:
White Line + Black Line Connection (Input)
White Line + Red Line Connection (Output)
The White Line is the common line

Package included:

1 x Photoelectric switch
