39mm hollow shaft hybrid stepper motor 4 phase 5 wire square
- メーカー
- QOJA
- JAN
- 8905578728375
- メーカー品番
- QOJA
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

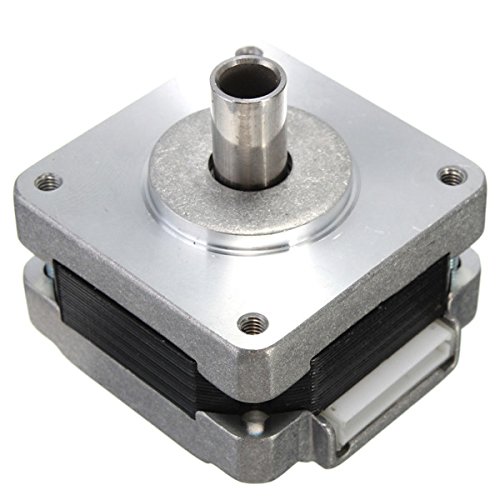

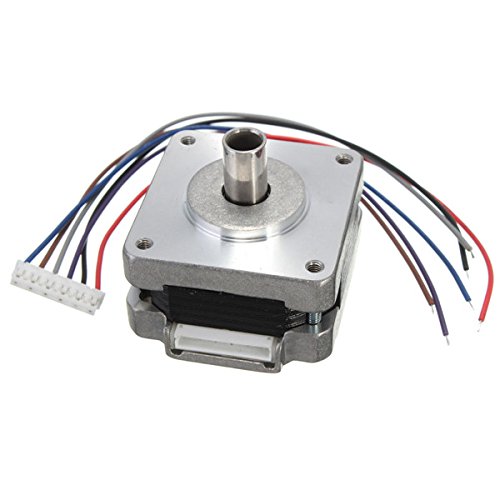

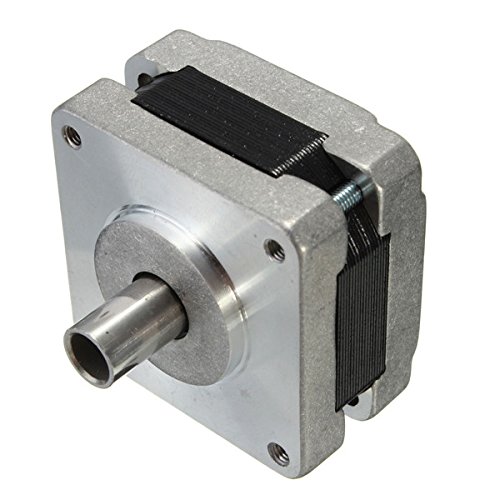

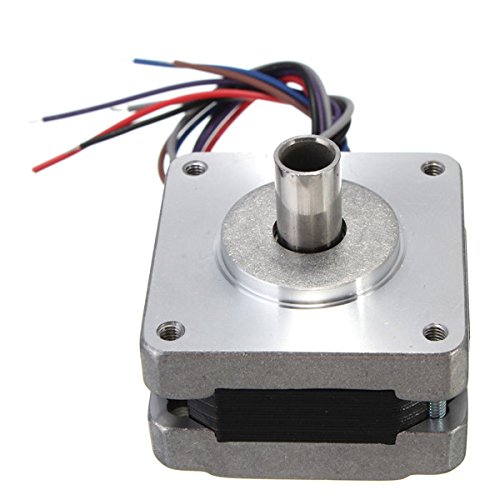

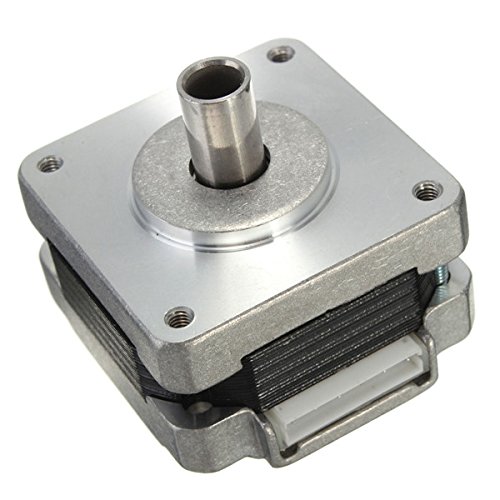

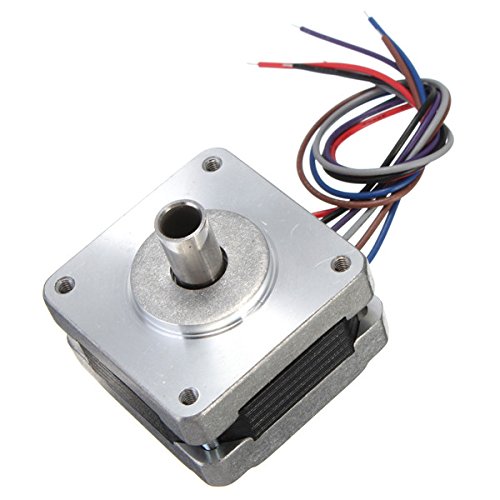

39MM Hollow Shaft Hybrid Stepper Motor 4 Phase 5 Wire Square 1.8 Degrees Stepper Motor
Specifications:
Length
39mm
Height
22mm
Output shaft
8 mm(middle of the through-hole diameter of 6.15mm)
Output shaft length
13mm
Step Angle
1.8 Degree
Resistance
Intermediate tap:54 ohms
Both Ends: 108 ohms
Lead
5
Cable length
140mm
12V Short circuit current
Intermediate Tap:0.2 A,
Both Ends: 0.1A
Rated Voltage
DC 12V
Rated Current
0.05A
Rated Power
5W
Weight
60G
Note:
Motor is a two-phase six-wire stepper motor, but inside the wiring put two phases middle of tap connected to a second
terminal, so from the outside look, it is a four-phase five-wire stepper motor.
Package included:
1x Hollow shaft Hybrid Stepper Motor
