hd 170 cmos cars rear view waterproof reverse backup camera

商品説明

Features :

170 Degree wide viewing angle.
Die cast Metal housing.
Small and compact design.

Simple installation for installers.
Reverse image.
Low light professional video processing technology.
The Camera has drilling,the diameter is 18.5mm.


Specification :

Material: OV7676 chip+Alluminum shell+Glass lens
Lens: 2.8mm
TV Systems: NTSC\/PAL
Sensitive area: 4.08mm x 3.12mm
Clarity: 520TV lines
Minimum illumination 0.01Lux
Video output: 1.0vp-p, 75Ohm
Power consumption: <1W
White Balance: Auto
Signal to noise ratio: greater than 48dB
Electronic shutter (N) 1 \/ 60-1 \/ 100000 (P) 1 \/ 50-1 \/ 100000
Operating voltage: DC 12V (actual chip voltage is 3.3V)
Operating temperature: -20 to +80 RH95% Max Waterproofing 100% Waterproof
Horizontal diagonal: 170 ° [actual viewing angle of 120 degrees]

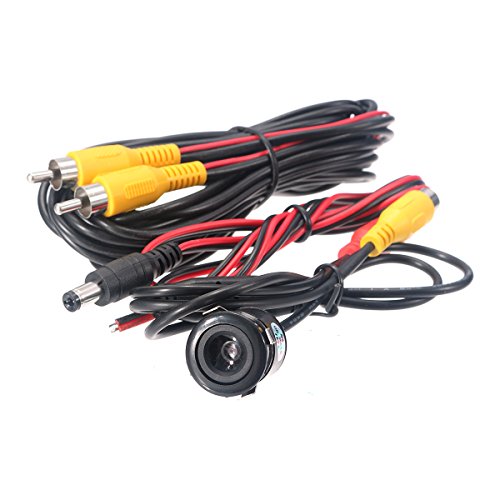

Package Includes :


1 x Car Rear View Camera

1 x 6M Video Cable

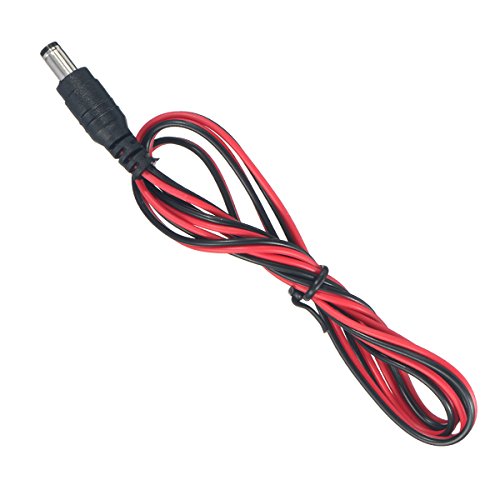

1 x 1M Power Cable
