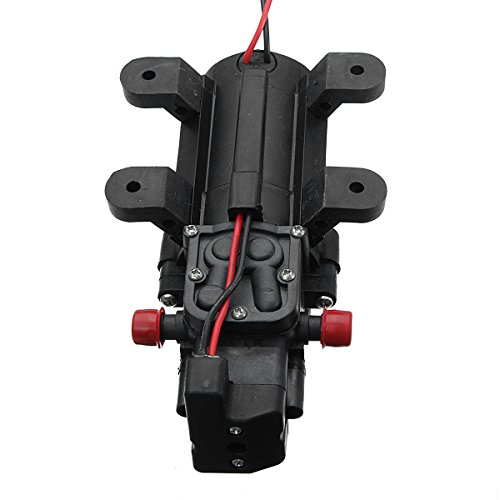

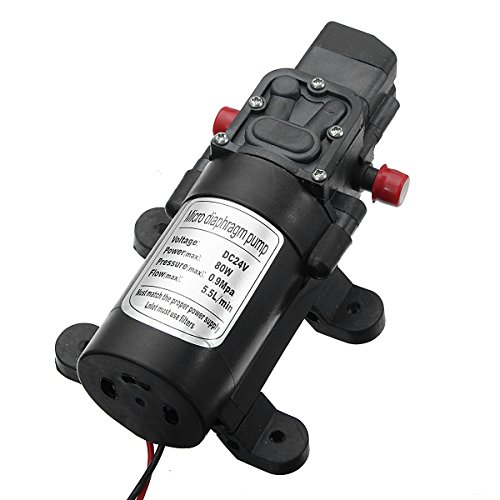

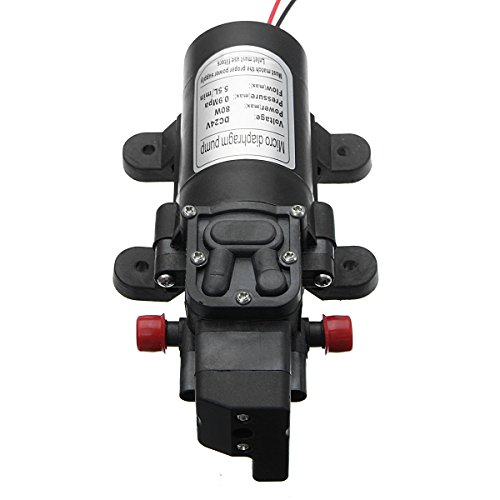

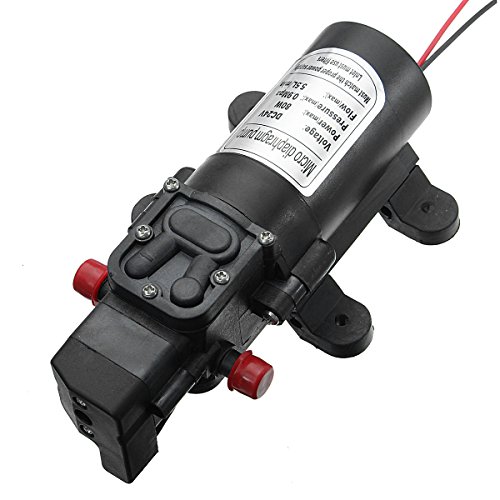

0142ya-24-80 130psi dc24v 80w mini micro diaphragm high pressure

商品説明

This is a product with a pressure switch. It will be automatically cut off the power supply and the motor stops running when the water outlet is turned off.
Once the water outlet is turned on, the motor starts running again. This type of product can be applied to occasions, which have demand for energy conservation and frequent switching, such as machine washing, feeding water to a solar energy system, and remote automatic controlling system of conveying water and suspending water supply, etc.


Features:

Corrosion resistant.
Automatic switch.
Rubber bracket can absorb vibration from the pump when working.
Connector size fits approx. 6.4-10.3mm inner diameter pipe.
Multi-purpose: can be widely used for garden sprinklers, shower, water taps in the boat, caravan or motor home.
Agricultural purposes: spray for farm chemical, pesticide.


Specifications:

Model Number: 0142YA-24-80
Voltage: 24V DC
Power: 80W
Max Pressure: approx. 130PSI (0.9MPA)
Working Pressure: approx. 80PSI (0.55MPA)
Flow rate: 5.5L\/min
Working temperature: 0 ~ 60\u2103
Color: Black

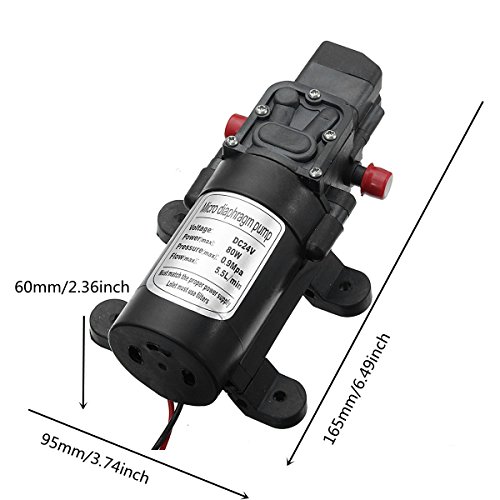

Size: 16.5 x 9.5 x 6cm (approx.)
Material: Engineering Plastics
Weight:622g


Package includes:


1 x 0142YA-24-80 130PSI DC24V 80WWater Pump
