5.5mm x 2.1mm dc power supply metal jack socket with nut and
- メーカー
- QOJA
- JAN
- 8907755287224
- メーカー品番
- QOJA
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
5.5mm X 2.1mm DC Power Supply Metal Jack Socket With Nut And Washer
Description :
Life
5000 times
Limit load
DC30V \/ 0.5 A
Contact resistance
≤0.03 Ω
Size(the pin)
5.5 mmx2.1 mm
The aperture of install
8 mm
Pressure
AC 500 V (50 hz) \/min
Temperature range of use
- 40-55 \u2103
Insertion and Extraction force
3-20 N
Insulation resistance
≥100 m Ω \/ DC250V
Length(containing the pin)
about 21 mm
Suitable for
factory production,DIY refitting or electronic production, etc
Feature
DC Jack Socket head with screw-socket
Directly drill hole on surface veneer for installation,just fixed on the nut
Such as install on the plastic shell,chassis,machine shell,simple,convenient and fast.

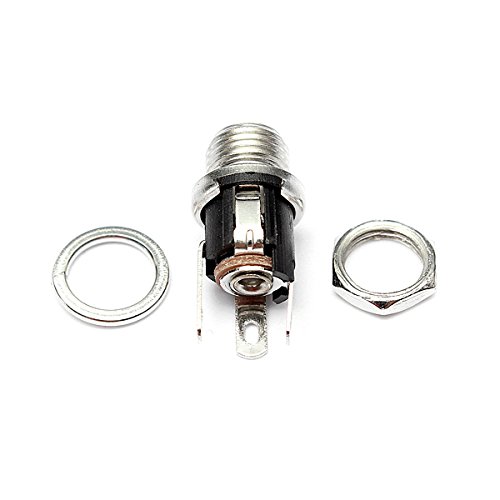

Package Included :
1 x nut
1 x washer
1pc dc power supply metal jack socket

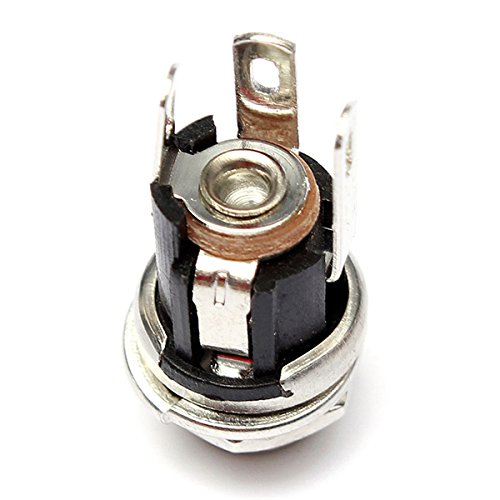

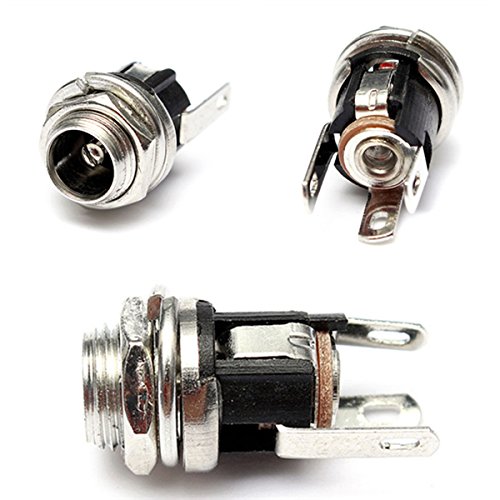

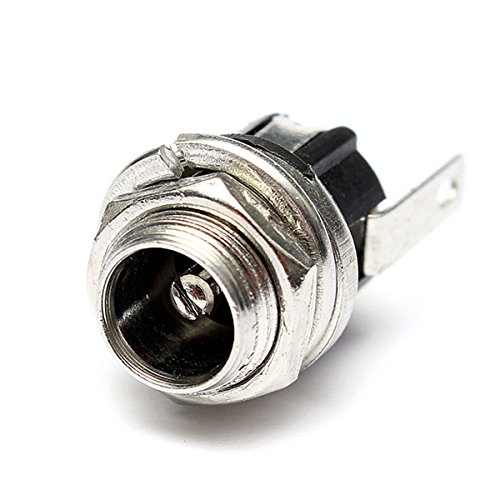

Detail Pictures :
Thank you for surfing our website. Welcome your kindly suggestion and your product requirements,we will provide our best service for you.
