商品説明

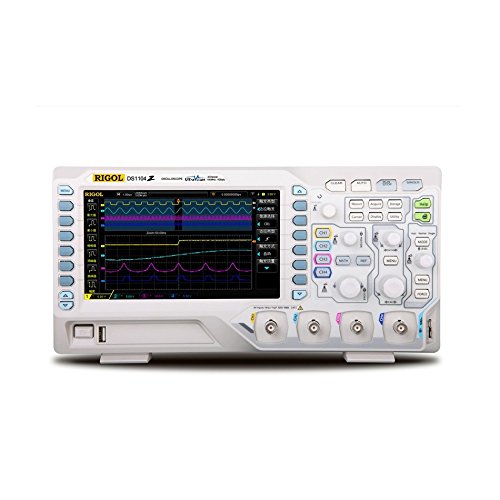

RIGOL DS1104Z Digital Oscilloscopes 4 Channels Oscilloscope 1G Sa/s Real-time Sample Rate Osciloscopio Portatil 7 In" WVGA TFT
Features and Benefits:
100MHz Bandwidth, 4 channels
1G Sa/s Real-time Sample Rate
12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
Innovative "UltraVision" technology
Up to 30,000wfms/s Waveform Capture Rate

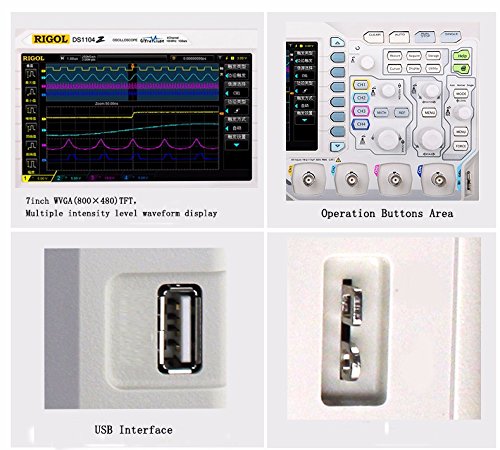

7 Inch WVGA (800x480), multiple intensity levels waveform display
Specifications:
Bandwidth ：100 MHz
Analog Channels：4
Sample Rate： 1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
Max Memory Depth： 12Mpts(standard) ,24Mpts(option)
Max. Waveform Capture rate：Up to 30,000 wfms/s
Real Time waveform Record and Replay：Up to 60, 000 Frames(Opt.)
Std. Probes:RP2200 150MHz BW Passive Probe:4 sets
Built in 2 Ch Source: No

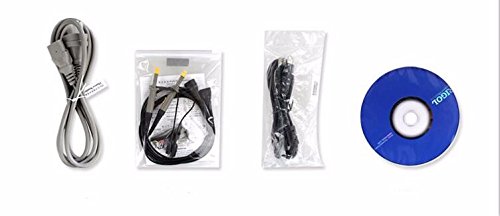

Packing Included:
1 x Host
2 xprobe
1x Power cord
1 xUser's manual
1 xCD
