RSRエレクトロニクスSG105ファンクションジェネレータの手を開催

商品説明

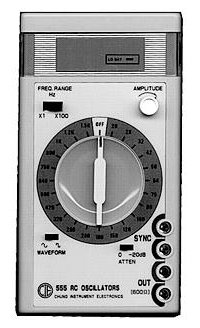

A pocket-sized, low distortion sine-square wave generator, ideal for field technicians, students and hobbyists. Operates with a standard 9V battery.

SPECIFICATIONS

Frequency Range:
x 1-20Hz to1.5KHz
x 100-2KHz to150 KHz
23 frequency steps
Output Control: 0 db, -20 db and fine adjust
Output Impedence: 600 ohms +10%
Output Voltage: 1.2 rms max. (no load)
Maximum Distortion:
200 Hz to 15KHz -0.05% (THD)
50 Hz to 30 HKz -0.1% (THD)
20Hz to 100HKz -0.5% (THD)
