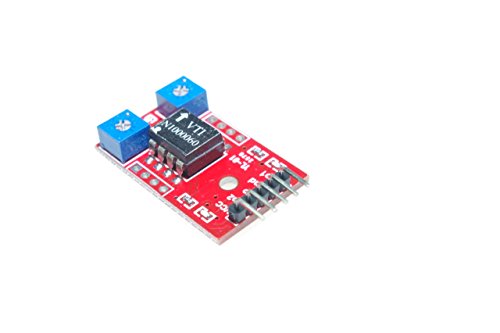

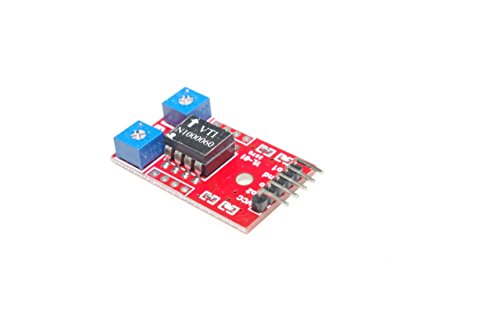

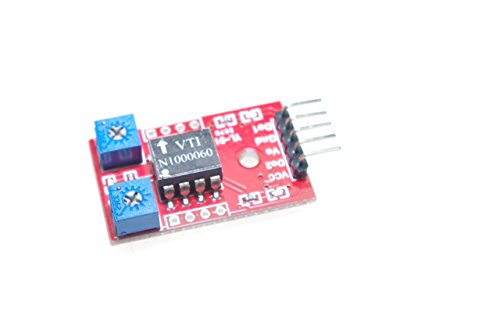

SMAKN Single-axis tilt sensor module, SCA60C tilt sensor module [並行輸入品]

商品説明

Low level light will be on when valid signal output;. 1. Dimension: 3.1cm X 1.5cm wide 2.1cmX high
2. Main chips:. LM393, tilt sensor probe
3. Operating voltage: DC 5V
4. Inclination signal analog voltage output, 0-180 ¡ã corresponding 0.5-4.5V, can be collected as microcontroller AD;
5. Two way tilt alarm signal output;
6. Low level light will be on when valid signal output;
7. Tilt angle alarm range: 0-90 ¡ã 90-180 ¡ã Full range adjustable, adjustment accuracy of ¡À 1 ¡ã
8. Tilt signal is TTL high and low, can be accessed to the microcontroller IO port directly.
10. Applications: Smart body balance testing, experimental teaching demonstration, product development etc.;

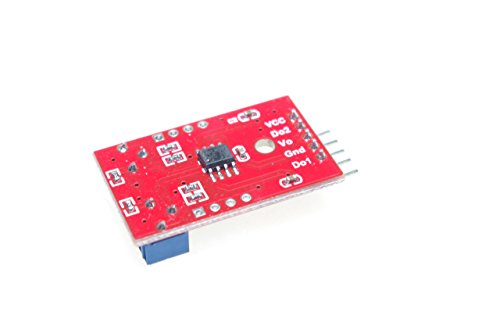

Module interface connection instruction (4-wire):
1. VCC connect to 5V voltage
2. GND connect to GND
3. DO1 left tilt TTL-level output port, directly connected microcontroller IO port for the threshold signal;
4. DO1 right slant TTL-level output port, directly connected microcontroller IO port for the threshold signal;
5. VO is a voltage signal corresponding to the angle converter, the output voltage is analog voltage value [0-180 ¡ã] corresponding to 0.5-4.5V, it can be connected with a microcontroller of the AD input port.
