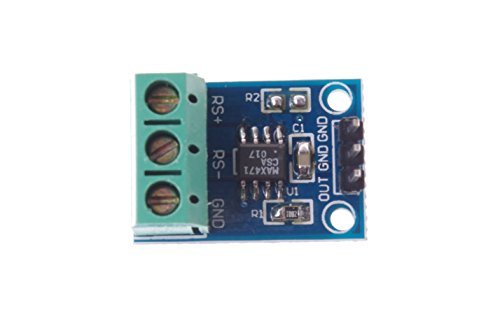

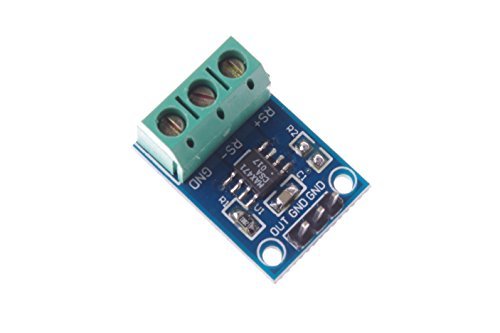

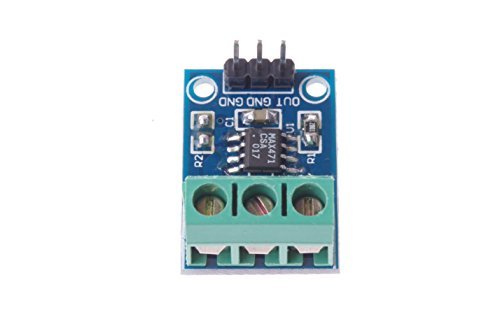

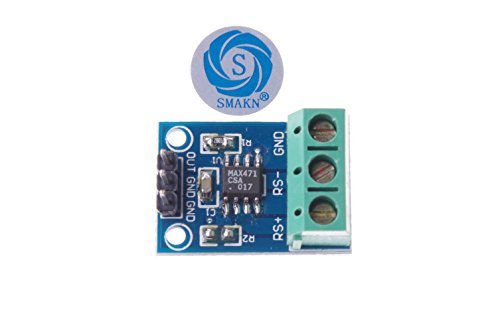

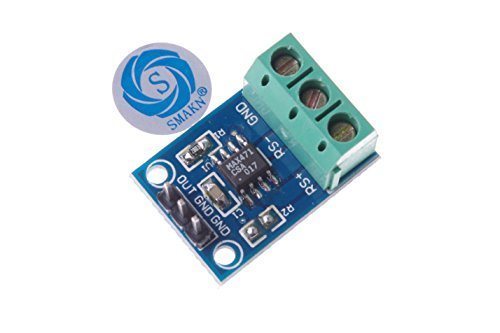

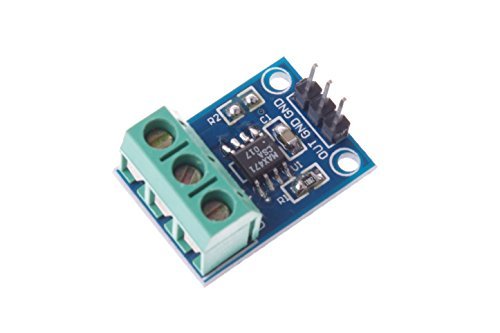

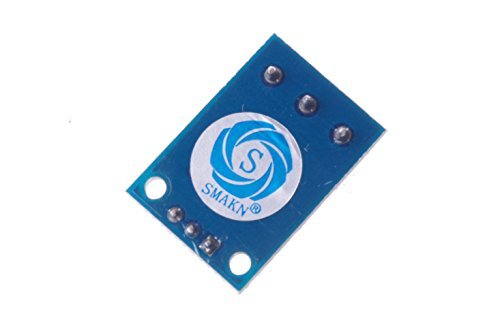

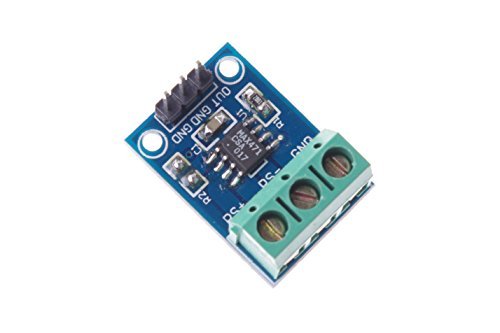

SMAKN? 3A Range Current Sensor Module MAX471 Module [並行輸入品]

商品説明

*With a perfect high-current detection.
*Precision was contained internal sense resistor.
*When the detected current exceeds the maximum 3A, it can be used in parallel to expand the current scope of testing.
Performance parameters: *Voltage range: 3-36V.
*Detection current range: 0-3A.
*Current-voltage conversion ratio: 1V / A.
*The normal operating temperature range, accuracy: 2%.
*Maximum Supply Current: 100uA.

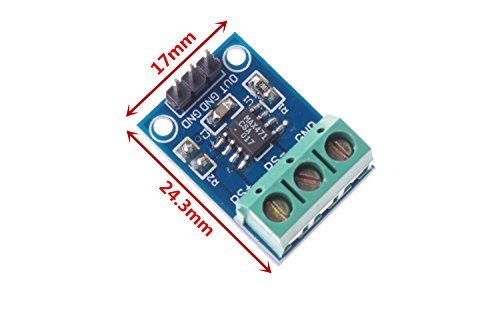

*Dimensions: 24.3mm * 17mm.
Basic Instructions: *This module should be connected to the current to be detected before the load after load power.
Input Terminal: *INPUT +: directly connected to the positive power (load power of positive), INPUT-: positive direct access load (load power change).
*GND: power supply or the load connected to the negative electrode.
Output wiring: *OUT is the output voltage value, it can be connected microcontroller such as AD inputs.
*Current value proportional output voltage value and the detection of 1V / A. (I.e., the output voltage value is 1V, indicating that the sensed current magnitude of 1A).
*GND connected microcontroller negative.
