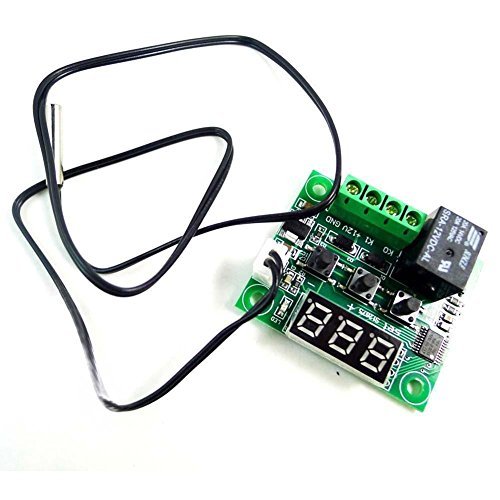

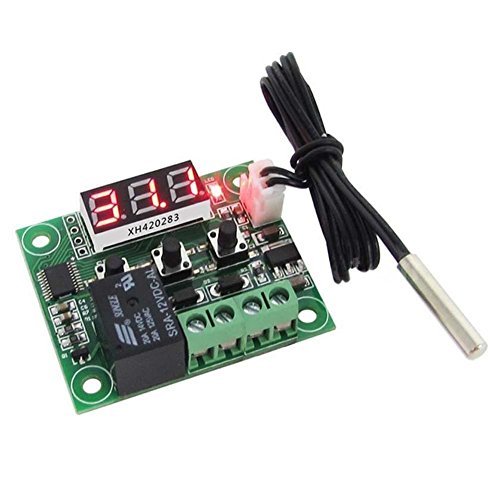

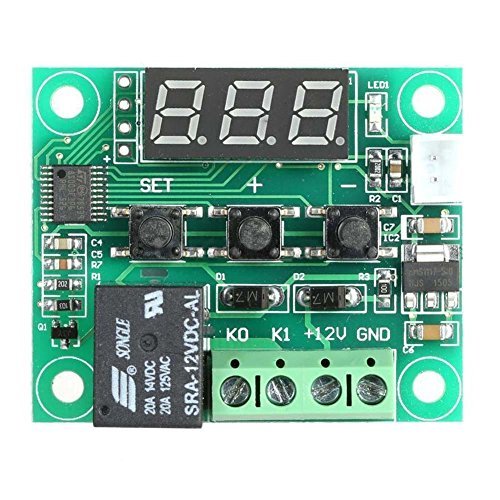

SUNKEE -50-110°C W1209 12V Digital thermostat Temperature Control Switch sensor Module [並行輸入品]
- メーカー
- SUNKEE
- ブランド
- Sunkee
- JAN
- 0780235513208
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Product Features
?100% brand new and high quality guarantee.
?Temperature range :-50-110 .
?Dimensions: 48.5 * 40mm.
?Temperature control mode: ON / OFF.
?Resolution?oWhen temperature is 0.1 , the resolution is -9.9~99.9, other temperature segment is 1 .
?Control accuracy: 0.1 .
?Hysteresis accuracy: 0.1 .
?Refresh rate: 0.5S.
?High temperature protection?o 0-110 .
?Supply voltage: DC 12V.
?Static current: ? 35MA, attract current ? 65MA.
?Output voltage: DC 12V.
?Output power: 20A relay .
?Measurement input: NTC (10K 0.5%) Waterproof Sensor.
?Environmental requirements: -10 ~ 60 ? Humidity 20% -85%.

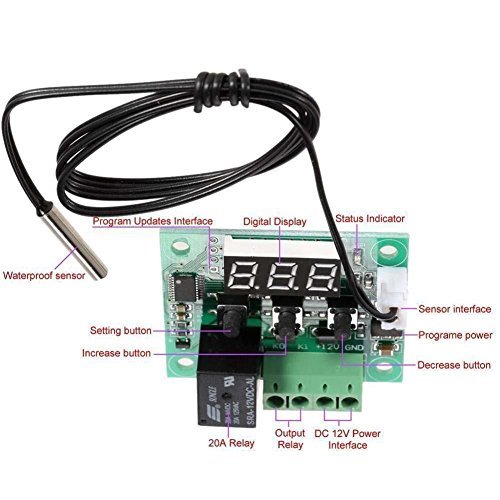

How to use

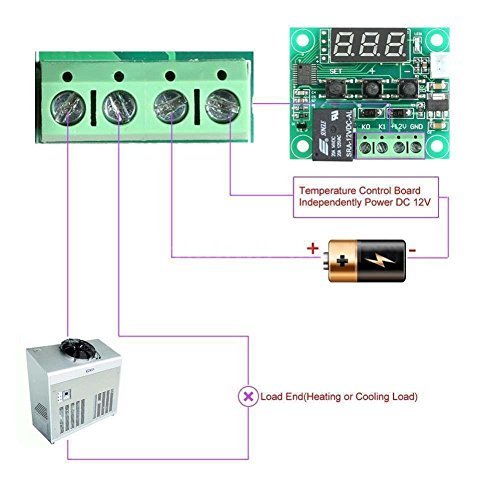

?Connect the power supply and the load, you can supply to the controller.
?Is displayed as a measured temperature.
?Press the SET button, the display flashes the temperature.
?Press - to set the desired temperature.
?After setting press SET to confirm return,.
?The controller automatically performs the relay by setting off.
?Lights, LED status descriptions.
?Indicator: Off The relay is switched off, Always indicate the relay is closed.
?LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay.
?the display --- as high temperature protection.
?Package Includes
1 x -50-110 C W1209 12V Digital thermostat Temperature Control Switch sensor Module.
