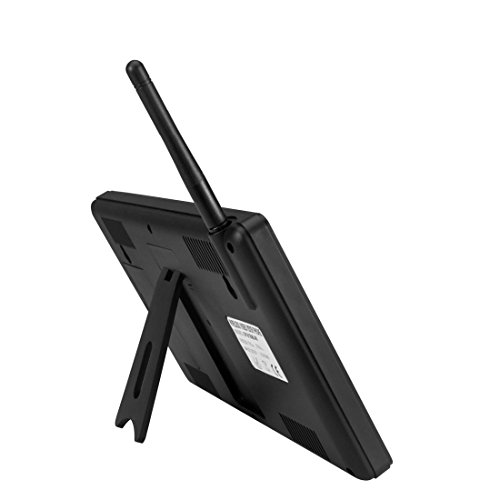

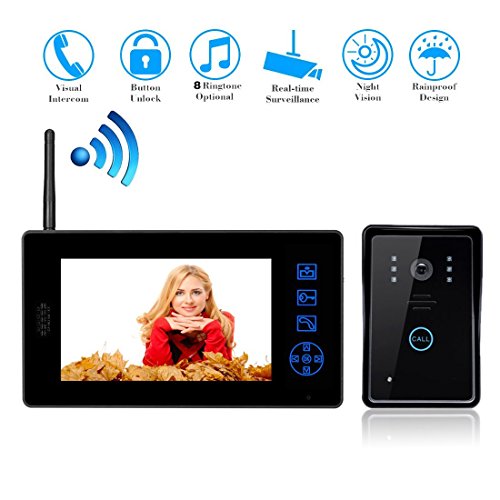

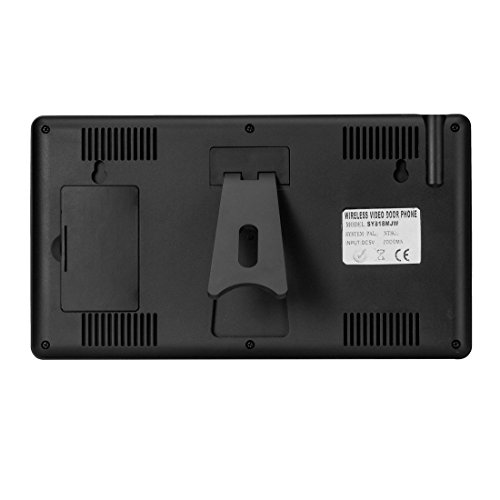

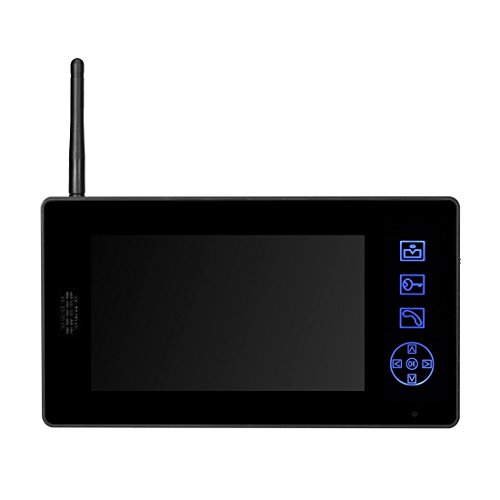

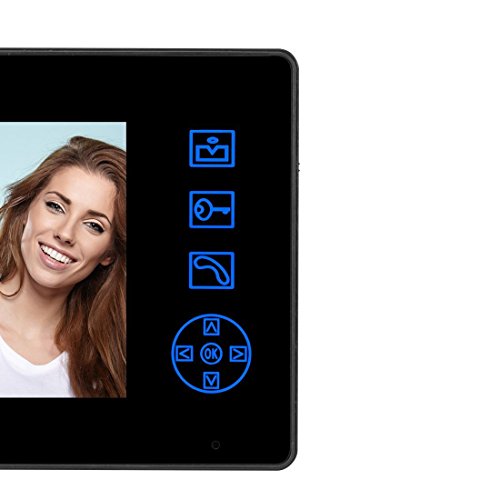

SYSD 818MJWREC11 7 inch LCD Color HD Indoor Unit

商品説明

Specifications:
Screen size: 7 inches
Display size: 235 * 130 * 20 mm
The LCD resolution: 800 * 480
Image resolution: 640 * 480
Main functions: monitoring, video, photo, video intercom, open the lock.
Extended memory: maximum support 32 gb TF card (standard does not include memory card)
Video formats: the ASF (can be directly playback, computers should be installed with the software to play)
State of a single picture: 640 * 480 @ 25 FPS
Four images status: 320 * 240 @ 25 FPS
Photo format: 640 * 480 JPG
power input: 100-100,50/60 hz
The power output: 5 v / 2 a
Video output formats: PAL and NTSC
video output: 1vp - p CVBS
Working current: less than or equal to 400 ma
Operating frequency: 2.4 GISM digital public spectrum

surveillance camera:
camera size: 110 * 58 *58mm
Lens: 3.6 mm
Resolution: 1 million pixels
Perspective: 92 degrees
Night vision distance: 5-15meters
Main functions: the infrared night vision surveillance
The working frequency: 2.4 G ISM digital public spectrum
Working current: daytime: 250 ma; Night: 450 ma MAX
power input: 100-100,50/60 hz
The power output:12v / 1 a

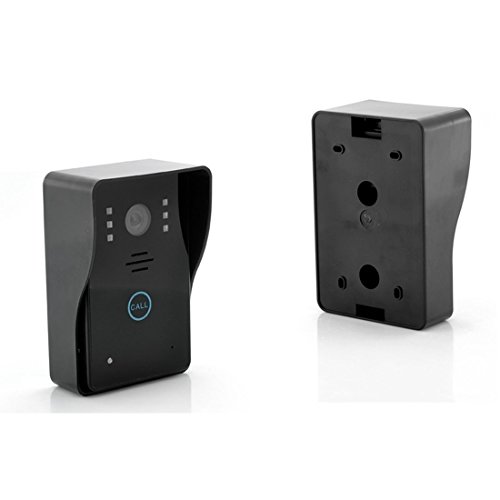

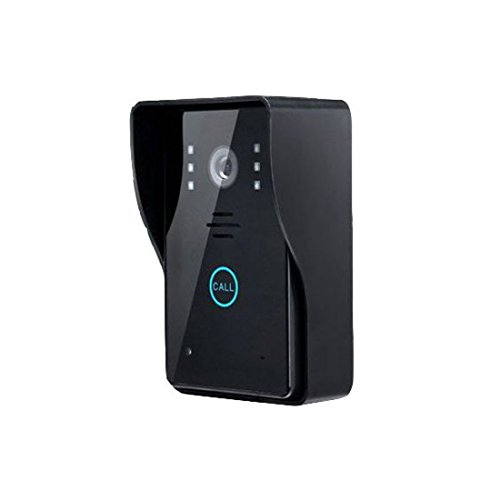

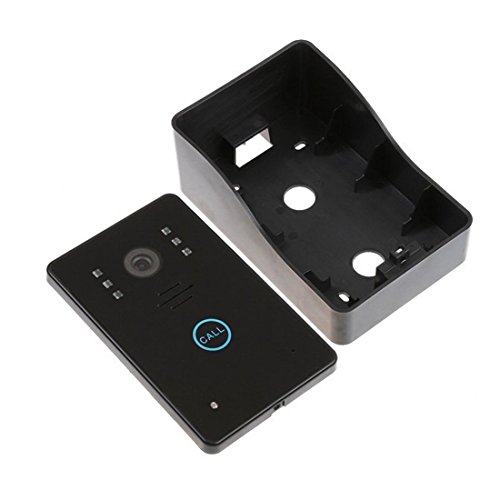

outdoor camera:
Camera: 1/4" CMOS
Camera lens: 3.6mm
Camera viewing angle: 92 degrees
Call duration time: 30-120 Seconds Adjustable
Monitor duration time: 30-120 Seconds or long times
Power consumption: Static state <0.5W, calling <10W
Power input: AC 100V-240V 50/60 Hz
Power output: DC5V
Operating frequency: 2.4 GISM digital public spectrum
Outdoor camera:168*110 *65mm

the standard accessories:
1 * indor monitor
1 * outdoor camera
2 * power adapter
1 * screw package

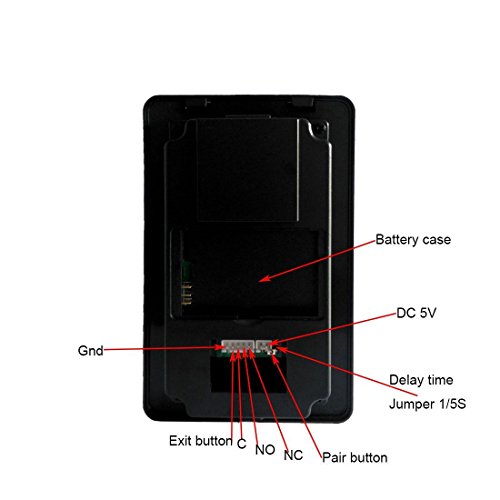

1 * 5 core terminal
1 * user menual 1 * 2.4G Anten
