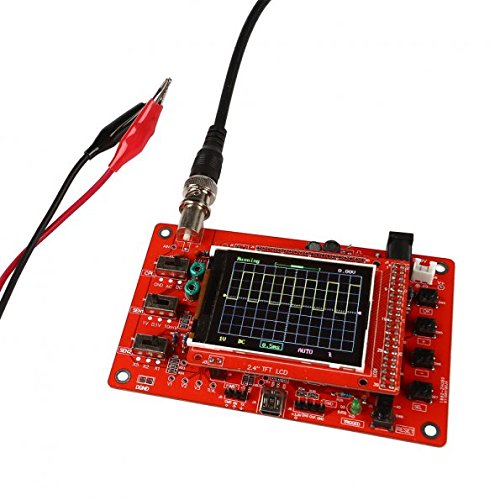

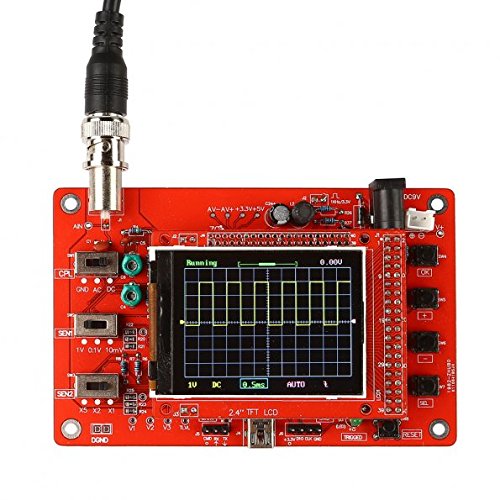

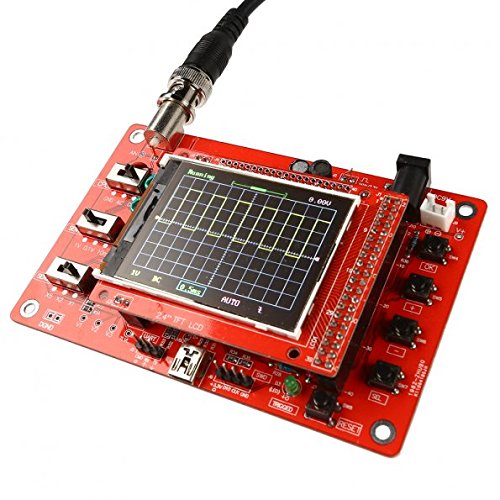

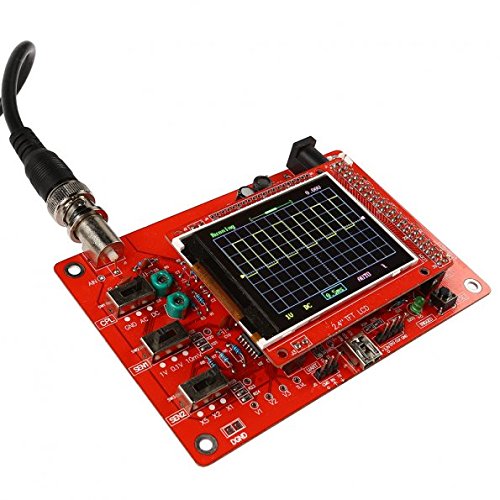

サインスマート　SainSmart組み立てたDSO138 2.4" TFT デジタル　オシロスコープ　(1Msps)

商品説明

DSO138はオープンソースです。使用者はこれをもって、ハードウェアで新しい応用が開発できます。 - Highest real-time sampling rate : 1Msps
- Accuracy : 12Bit
- Sampling buffer depth : 1024 bytes
- Analog bandwidth : 0 - 200KHz - Vertical sensitivity : 10mV / Div - 5V / Div ( 1-2-5 progressive manner )
- Adjustable vertical displacement , and with instructions
- Input impedance : 1M ohm
- Maximum input voltage : 50Vpp (1: 1 probe ), 400Vpp (10: 1 probe )
- Coupling modes include DC / AC / GND
- Horizontal time base range : 10us / Div - 50s / Div ( 1-2-5 progressive manner )
- With automatic , conventional and single -shot mode , easy waveform capture the moment
- Available rising or falling edge trigger
- Adjustable trigger level position , and with instructions
- Coupling modes include DC / AC / GND
- Observable trigger waveform before ( Negative delay )
- Freeze the waveform display (By pressing HOLD function)
- Shutdown Current: 20nA

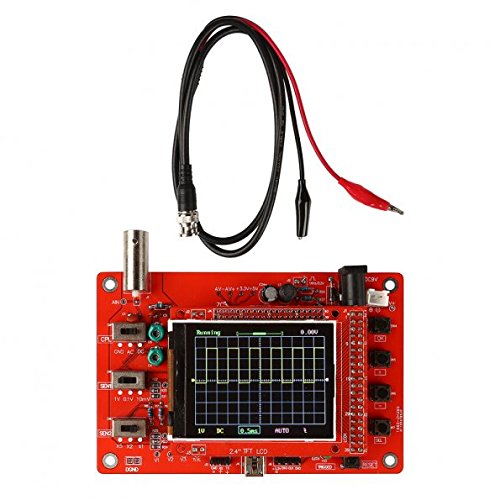

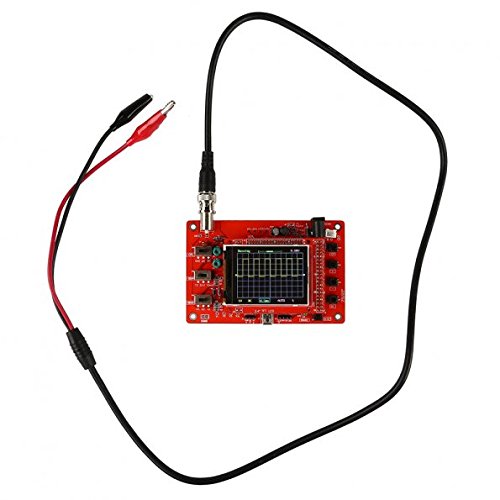

Package list:
- DSO138 osciloscope
- One FREE Probe
Note : This is a fully Assembled and Soldered professionally
