Square D by Schneider Electric 9013FHG42J55 Air-Compressor Pressure Switch, 150 psi Set Off, 40 psi Fixed Differential, 1/4" NPSF Internal [並行輸入品]

商品説明

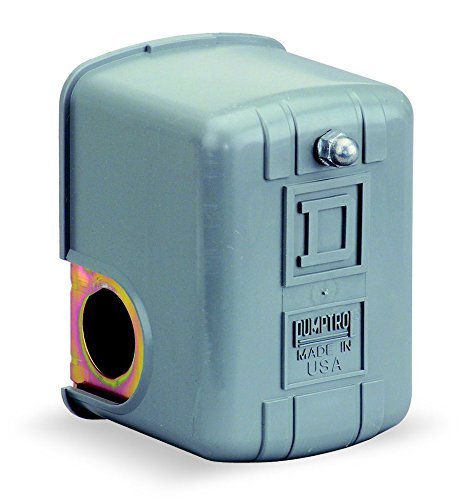

This Square D Pumptrol 9013FHG42J55 air-compressor pressure switch controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 150 psi. The switch has a 1/4" NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 hp or less. The non-adjustable differential is 40 psi, and the adjustable cut-out range is 100-200 psi. The switch is diaphragm actuated and has a fixed differential. The threshold, or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections, and two 2-pole NC contacts open on rising pressure. The enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated. The switch is Underwriters Laboratories (UL) Listed and Canadian Standards Organization (CSA) certified. This switch includes a 2-way pressure release system and a black cover. Square D Pumptrol pressure switches are manufactured by Schneider Electric.
