SeeedStudio - Mini PIR Motion Sensor Module - DIY Maker Open Source BOOOLE [並行輸入品]
- メーカー
- SeeedStudio
- ブランド
- Seeedstudio
- JAN
- 0720405486369
- メーカー品番
- 800130001
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

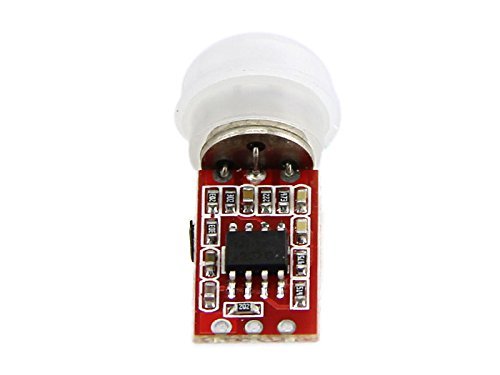

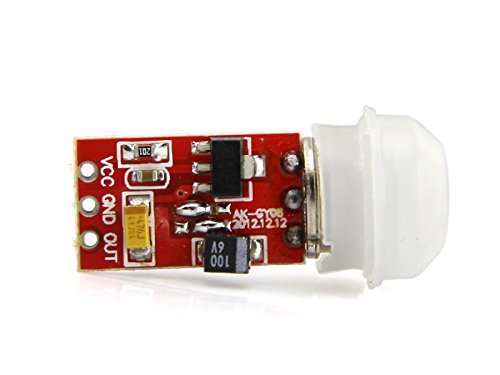

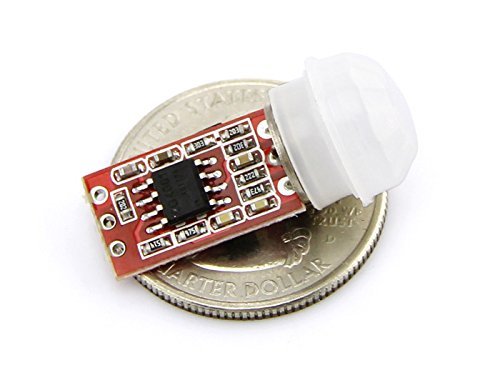

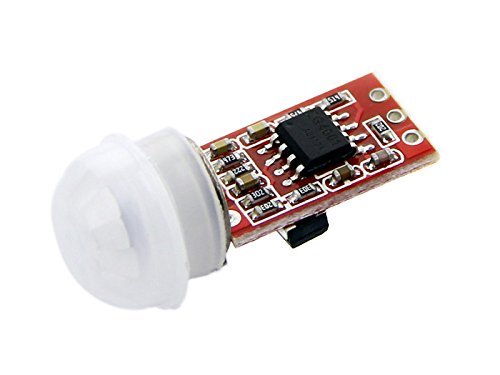

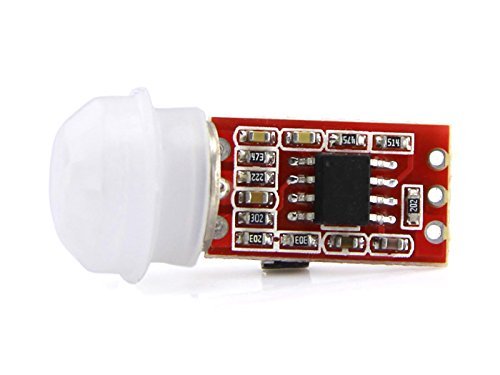

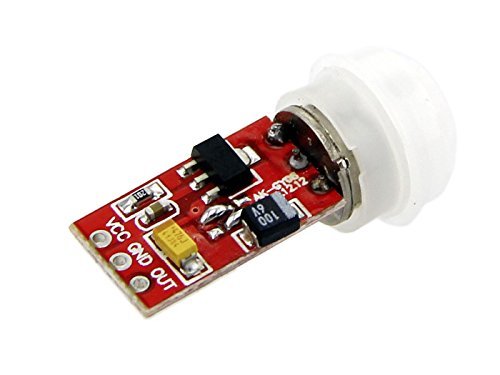

This is a mini passive infrared sensor that it can sense movement of people, animals, or other objects. It features high sensitivity and instant reaction, commonly be used in burglar alarms and automatically-activated lighting systems.
Features:
- High sensitivity
- Instant reaction
- Low quiescent current
- Compact layout design
Specification:
- Input voltage: DC 5-9V
- Quiescent current: < 55uA
- Detecting angle: < 100degree
- Detecting distance: approx.7m/23 feet
- Level output voltage: 3V/high, 0V/low
- Trigger signal: 0V/low
- Holding time: 2s
- Operating temperature: -10-40??
- Dimensions: 28 x 13 x 13mm
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- High sensitivity. Instant reaction. Low quiescent current. Compact layout design. Input voltage: DC 5-9V. Quiescent current: < 55uA. Detecting angle: < 100degree. Detecting distance: approx.7m/23 feet. Level output voltage: 3V/high, 0V/low.
- Trigger signal: 0V/low. Holding time: 2s. Operating temperature:-10-40¡æ. Dimensions: 28 x 13 x 13mm.
