seeedstudio／dso中庭ブラック・アルミニウム合金メーカーのオープンソースbooole

商品説明

bは銀で利用できるb < br /> b dso中庭アルミニウム合金シルバーb < br /> dsoクワッド?アルミニウム合金は、現在利用可能なものスタジオ。新たな、エレガントなアルミニウム合金シェルの中庭は、よりよくさえします。このクールなツールはあなたの

More information in English:

Silver is available

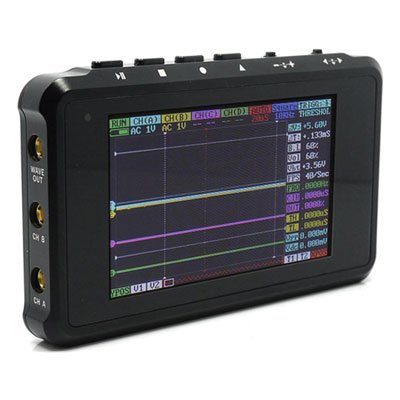

DSO Quad - Aluminum Alloy Silver
DSO Quad - Aluminum Alloy now is available at Seeed Studio. A new, rigid, elegant aluminum alloy shell makes the Quad even better. This is the coolest tool you should have on your worktable!

---

DSO Quad is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32F103VCT6) 32 bits platform, providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.
Note: Due to the metal conductive shell of DSO Quad, its operating voltage should be controlled under 60V during working in case of any damage to the Quad itself or human.
Feature
Pocket size and light weight
Two 72MS/s analog channels, plus two digital channels
Signal Generator
Auto Measurement
Various Triggering Option
Easy waveform storage
Firmware upgrade
User applications
Open source
Specifications
Analog channel * 2 : [CH_A] [CH_B];
Digital channel * 2 : [CH_C] [CH_D];
Vertical Scale: 20mV-10V/div (x1 probe);
Vertical solution: 8 bit ;
Input coupling: AC/DC ;
Max input voltage: 80Vpp (x1 probe);
Storage: 4K per channel
Software trigger type: edge, pulse, level (to be added)
Hardware trigger type: edge
Trigger source: CH1/CH2/EXT
Test Signal generator: 10Hz to 1Mhz
Storage: internal 2MB USB disk
Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurement: Level, Voltage
Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode: real time
Sampling rate: 1kSa/s - 72MSa/S
Power: Lipo battery
Dimension: 98
