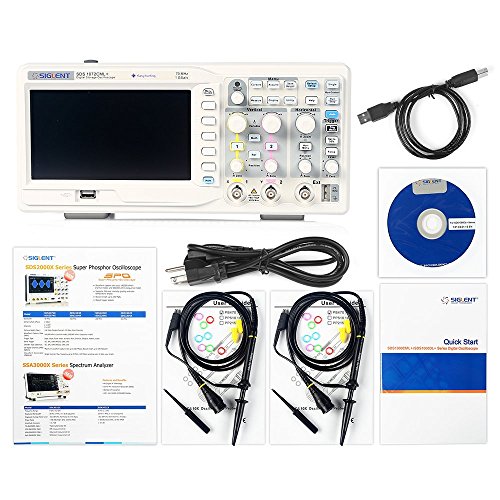

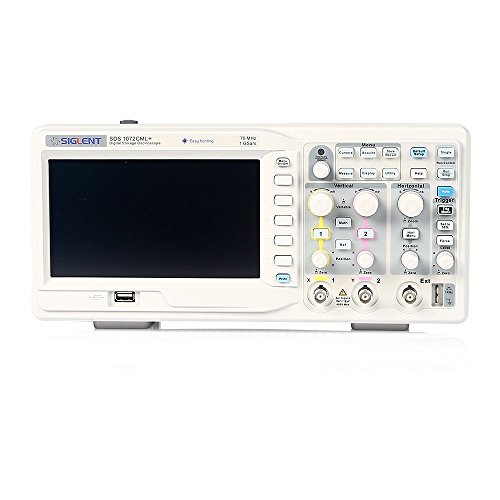

Siglent デジタルオシロスコープ器 SDS1072CML+ 1GSa/s

商品説明

Product overview
SDS1000DL+/CML+ series is a dual-channel universal digital
oscilloscope, available in 50 MHz, 70 MHz, 100 MHz and 150 MHz
bandwidth models. It includes a 2 Mpts memory depth that helps
to ensure accurate waveform resolution and to capture longer
signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is
adequate screen space to help better see and analyze waveform
details. Along with a 1 GSa/s sampling rate, the SDS1000DL+/CML+
supports 32 parameters measurements and common mathematical
operations to speed up complex / repetitive measurements.
Key Features:
150 MHz, 100 MHz, 70 MHz, 50 MHz bandwidth models
Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling
rate up to 50 GSa/s
Memory Depth up to 2 Mpts
Trigger types: Edge, Pulse, Video, Slope, Alternate
Waveform math functions:+, -, *, /, FFT
6 digital frequency counter
Supports Multi-language display and embedded online help
Screensaver from 1 minute to 5 hours
Digital filter and waveform recorder function
Shortcut storage function key
7 inch TFT-LCD display with 800 * 480 resolution

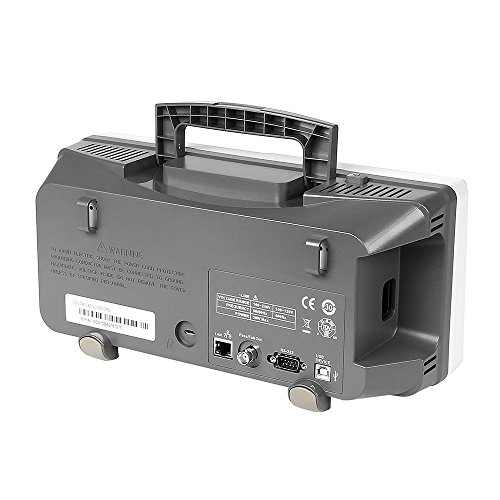

Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI- 11), Pass / Fail
Mechanical:
Dimensions:
Length 323.1 mm
Width 135.6 mm
Height 157 mm
Weight N.W: 2.5 Kg
