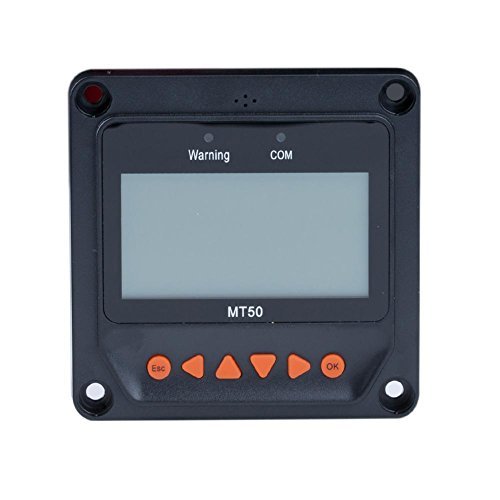

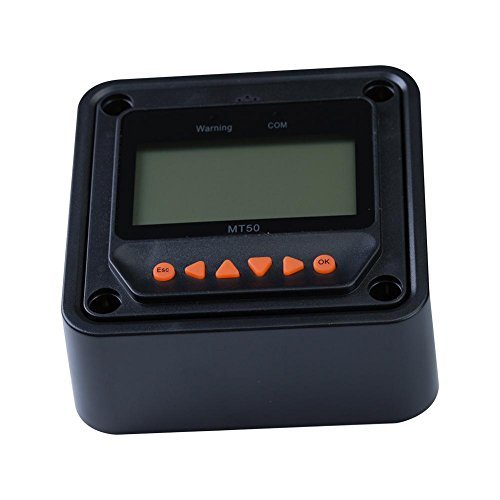

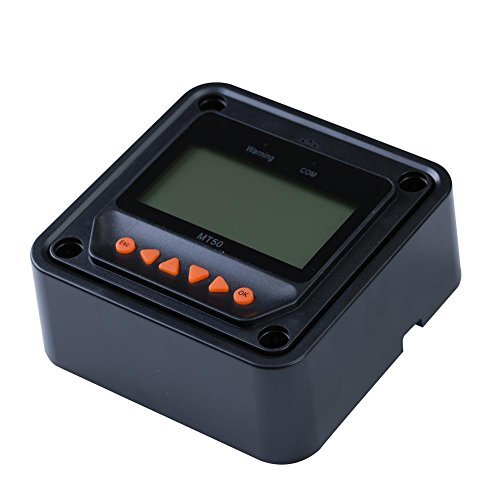

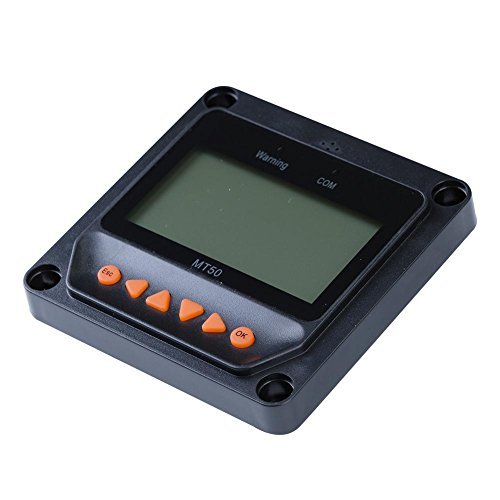

Sun YOBA MT50 LCD Display Remote Meter for Tracer-A Tracer-BN Series MPPT Solar controller [並行輸入品]

商品説明

Advantages:
The new-generation remote display unit MT50 for LSxxxxB(P), VSxxxxBN and TracerxxxxBN(P) controllers is an associated display device which supports both the latest communication protocol and the voltage technology standard of solar controllers.The remote meter is showing more parameters than on the controller screen.

Note:
MT50 is an optional remote meter to monitor and program Epsolar controllers. This unit is ONLY compatible with Tracer-A, Tracer-BN, LS-B, LS-BP, VS-BN, eTracer, iTracer series controllers from EPsolar (will not compatible with other controllers not mentioned).

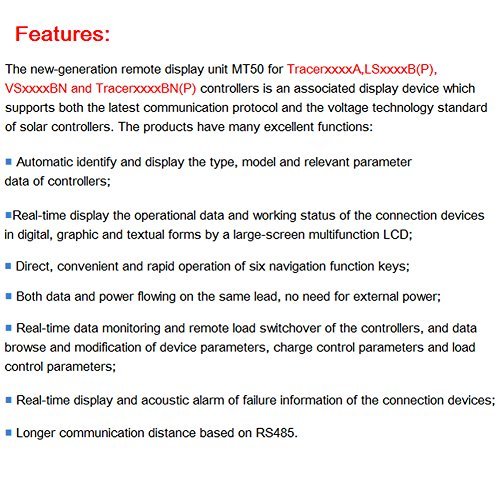

Features:
- Automatic identify the controller, and display relevant parameter data.

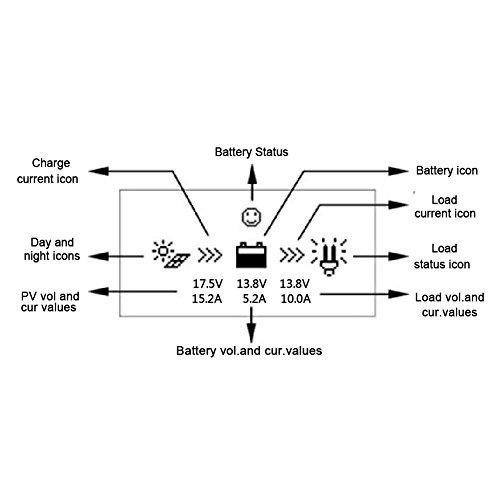

- Large-screen informative LCD displays all the operating data and system working status.
- Simple and convenient operation.
- Real-time alarm of failure information.
- Longer communication distance based on RS485.
- Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control. - Battery type selection: Gel, sealed, flooded and User (programable).
- Programmable parameters.
- Energy statistics display function.

Parameters:
- Self-consumption: Backlight on<23mA, Backlight off <15mA.
- Faceplate dimensions: 98 * 98 mm / 3.86 * 3.86 in.
- Frame dimensions:114 * 114 mm / 4.49 * 4.49 in.
- Connector type: RJ45.
- Meter cable :2m.
- Net weight: 0.190 Kg.
- Working environment temperature: -20??~+70??/-4¨H~158¨H.

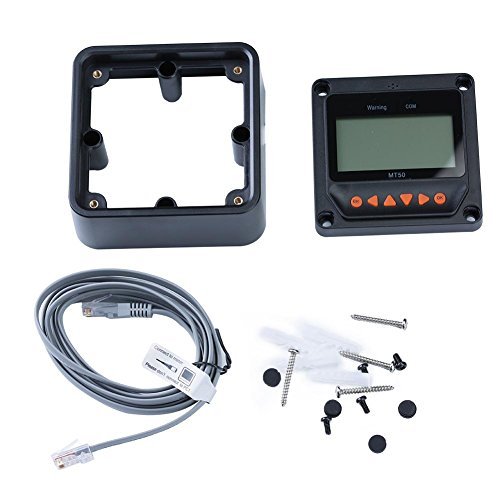

Package Included:
1x MT50 LCD Display Remote Meter

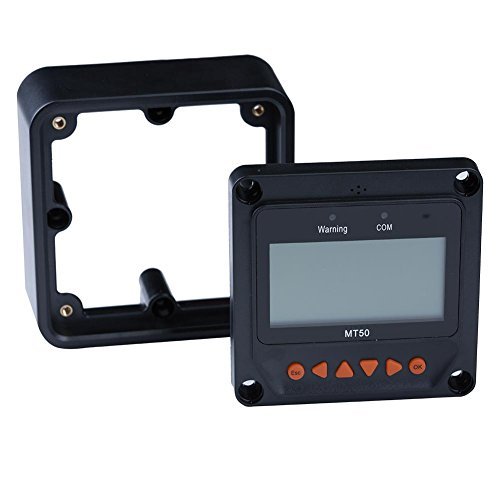

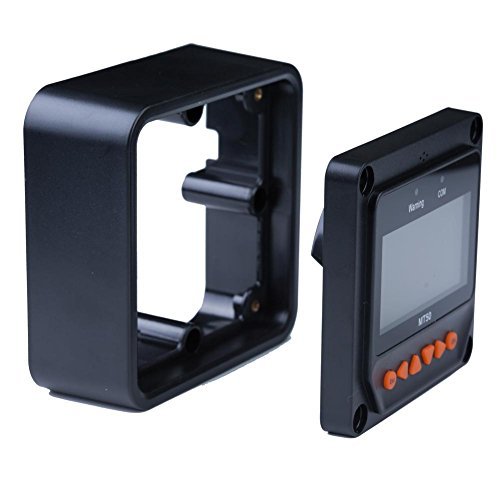

1x Wall Mounting Board
1x 2M Cable
4x Mounting Screws
