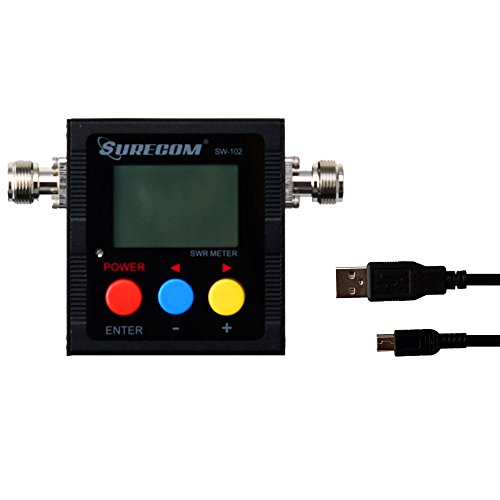

Gam3Gear Surecom SW-102S SO239コネクタデジタルVHF UHF 125-525Mhz電源＆SWRメーター

商品説明

Model: SW-102S

Features:
1 VSWR. Forward and reflected power direct digital readout, without any calibration.
2. Maximum measurable power range up to 120W.
3 low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
4.Build in Frequency country.

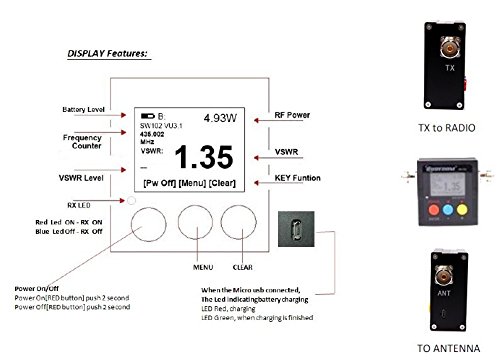

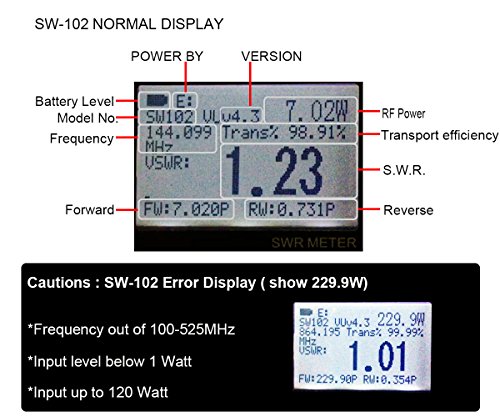

5. All Funtion display ( Frequency,Power , SWR,FW,RW,Battery Level)

Specifications:
Frequency range: 1025 - 525MHz
Measurable power range: 1 - 120W(+-0.5%)
Input Frequency counter (min 0.5 W input)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery
Interface: SO239 Interface
MAX. Power in: 120 W (Measurable power,Radio must be ANALOG)
V.S.W.R: 1.00~19.9
Frequency Ranger: COVER : 100MHz~520MHz
Insertion Loss: < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature: 0℃~60℃
Frequency counter: Yes ( TX input must be minimum 0.5W + - 0.5%)
Battery Voltage Display: Yes
Battery Build-in: 600 mAh Li-ion Battery
Auto Power Off: 1-9 mins
Size: 66*68*37 (mm)
Charger in: 5V (micro usb)
Backlight: AUTO OFF 1-9 mins
Interface (in and out ): SO239
Weight: 220g (include battery)
