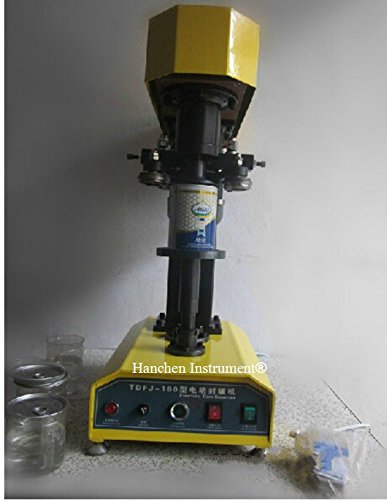

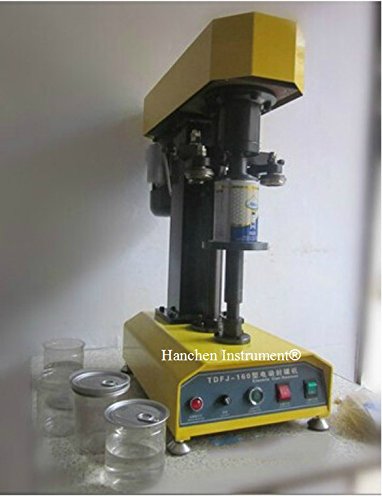

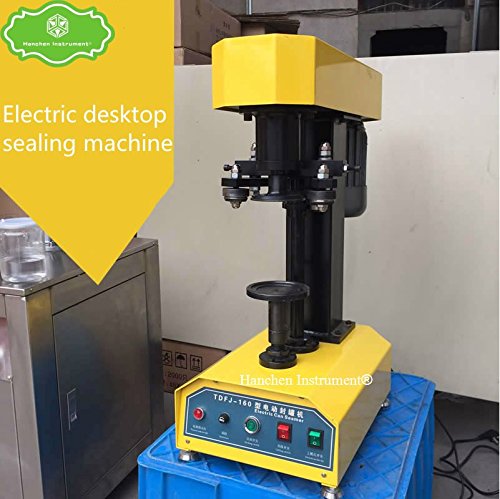

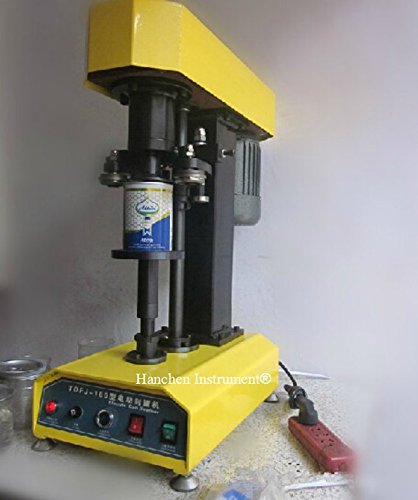

TDFJ-160 Electric desktop sealer sealing machine for cans plastic cans paper cans

商品説明

After?our?rder?s?onfirmed,the?roduct?ill?each?ou?ithin?--13?usiness?ays.

Technical Parameter:
Production capacity:10 to 15 / min
Tank diameter??45-?150mm
Tank high: 39-200mm(greater than the size of the tank, need to be customed.)
The spindle speed: 620 v/min
Motor: YB02-4 0.37KW
Speed regulating motor: 40W
Dimension: 600 * 320 * 700 mm
Equipment: about 75 kg

Operational key points:
1. The preparation before starting the work.
(1). Check all parts are in good lubrication.
(2). Check whether there is any loose on the firmware, the power cord with and without damage.
(3). Check the rotation system and mechanism for XXX and abnormal sound.

2.The adjust :
According to the point switch slowly adjust, lifting screw, adjust to the pot height required.Can sealing should pass the first roller and the two way roll to roll shall be complete, adjust the position of the roller wheel can sealing are available on the desired location.

3. The boot can seal:
1). Start the motor, pot cover the lid will be packed material.
2). Put the pot on the lower die can sealing machine, and put the jar the centralizer.
3). Confirm the jar placement is correct, lid after good and correct some stepping on foot switch can sealing.
4). Stop Press the power button
