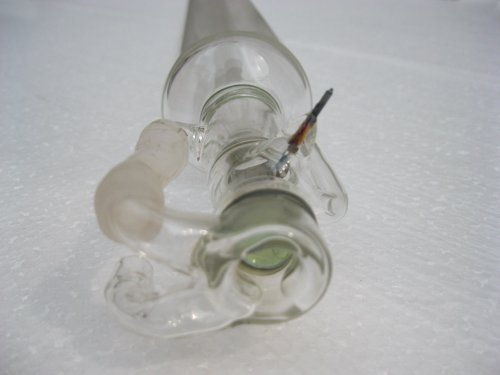

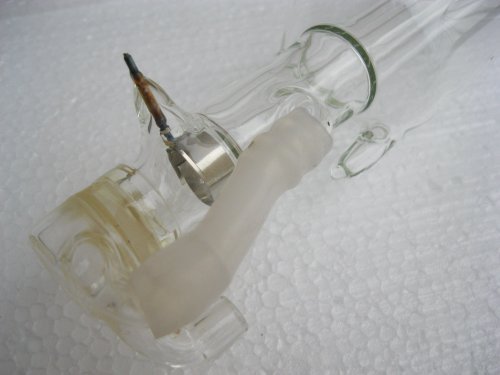

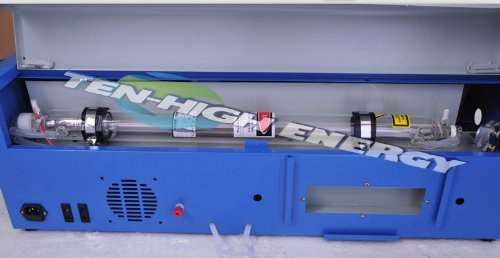

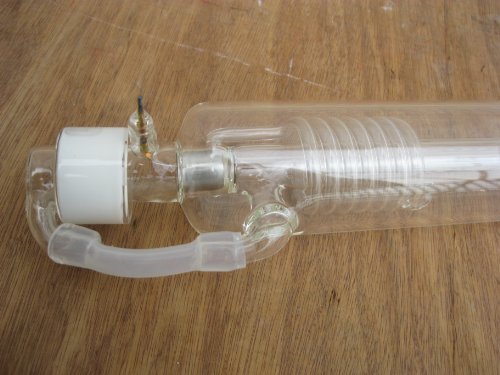

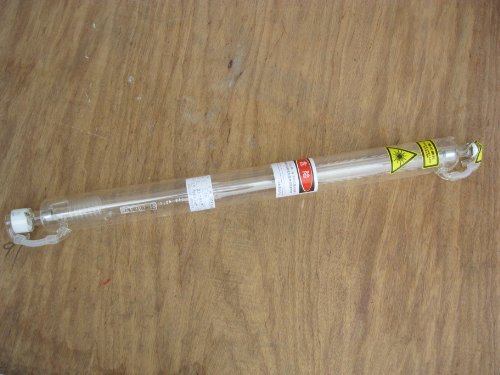

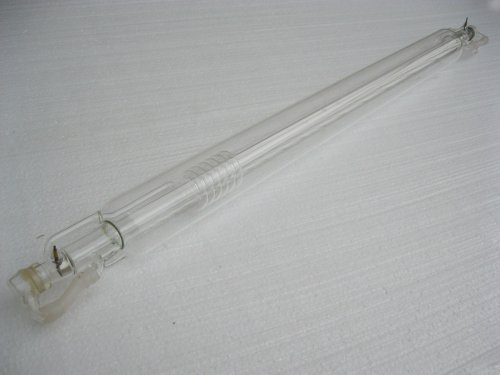

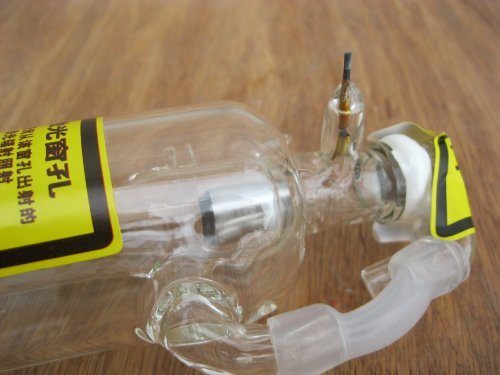

TEN-HIGH® AC110V glass laser tube 40W CO2 700mm length, 50mm Dia for laser engraving and cutting machine [並行輸入品]

メーカー
TEN-HIGH
ブランド
Ten-high
JAN
0619046158998
メーカー品番
TH-40wCO2LT
この商品のレビュー
Amazonでのレビュー
シェア

商品説明

Laser power adjustment:adjusting the output current of power supply through resistor/PWM control. Introduction
Model:CO2-TUBE-40W-70CM
Output Power:40W
Wavelength:10600nm
Working Voltage:15KV (Trigging Voltage=22KV)
Working Current:18mA
Divergence:1.95(beam diameter)
Dimensions:Length 700mm
Input voltage: AC 220V+30 or AC 110V+20 (to be specified when placing order).
Maximum output voltage:DC25KV (40W;50W) / DC28KV (60W) / DC35KV (80W)
Maximum output current: DC20mA (40W;50W)/ DC23mA (60W) / DC28mA (80W)
Isolation Withstand voltage: Input-output, input-enclosure: AC2000V-10mA-60s; negative pole of output connected to enclosure.
Protection: with well-grounded enclosure, output circuit of power supply can be open for short time (but arc between positive pole and enclosure should be avoided).
Response time (from time of input being available to the output current being up to nominal value)<1ms Protection switch: for detection of cooling water, to protect laser device; or activate with enclosure is opened.
> Laser power adjustment: (1) by adjusting the output current of power supply through resistor; (2) through PWM
control (magnitude being TTL voltage level).
Environmental requirements: temperature (-10~ 40centidegree), relative humidity<85%.

特記事項

  • 新品、並行輸入品です。Brand new parallel imports from the US.
  • Isolation Withstand voltage,Response time<1ms
  • Protection: with well-grounded enclosure, output circuit of power supply can be open for short time
  • TTL voltage level control: effective voltage level can be high or low through setting
  • Protection switch: for detection of cooling water, to protect laser device
