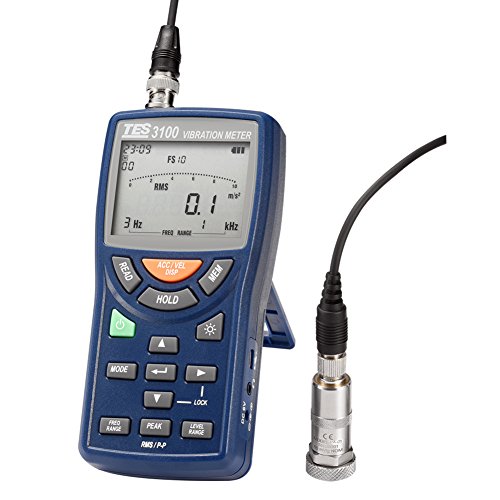

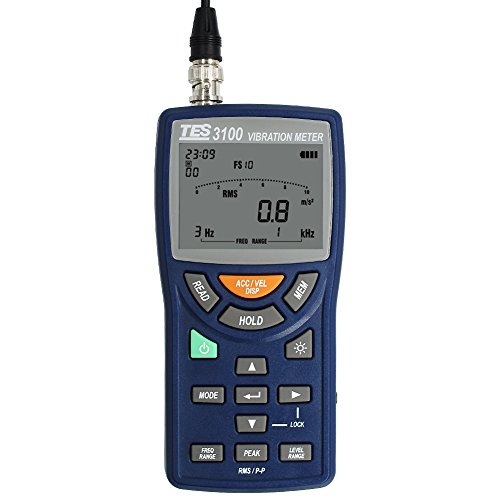

TES 3100 振動メーター

商品説明

仕様
●Piezoelectric Accelerometer PA-01 (3100, 3101, 3102)
- Sensitivity : 5mV/(m/s²)(±10%)
- Acceleration range : 100 g pk(980m/s²)
- Amplitude nonlinerity : ≦ 5%
- Freqency response : 10Hz to 1kHz (±10%), 1kHz to 15kHz (±3dB)
- Resonance freqency : >=15 kHz
- Transverse sensitivity : ≦ 5%
- Dimensoins/Weight : 46(H) x 17(D) mm / 45 g

●Measurement range (using PA-01 or PA-02)
- ACC (Acceleration) : 0.02 to 200m/s² EQ PEAK 1Hz to 5kHz
- VEL (Velocity)
0.3 to 1000mm/s RMS 3Hz to 1kHz
0.1 to 1000mm/s RMS 10Hz to 1kHz
- DISP (Displacement)
0.02 to 100mm EQ PEAK 3Hz to 500Hz
0.001 to 100mm EQ PEAK 10Hz to 500Hz

●Measurement full-scale range
- For accelerometer PA-01 and accelerometers with sensitivity : 1.0 to 9.9mV/(m/s²)
- ACC (Acceleration) : 1, 10, 100, 1000m/s²
- VEL (Velocity) : 10, 100, 1000mm/s
- DISP (Displacement) : 0.1, 1, 10, 100mm
